Description

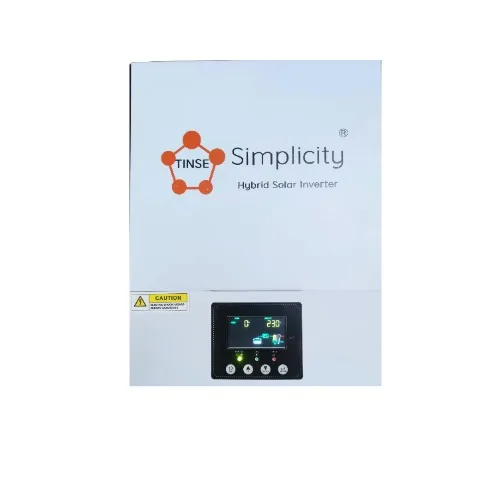

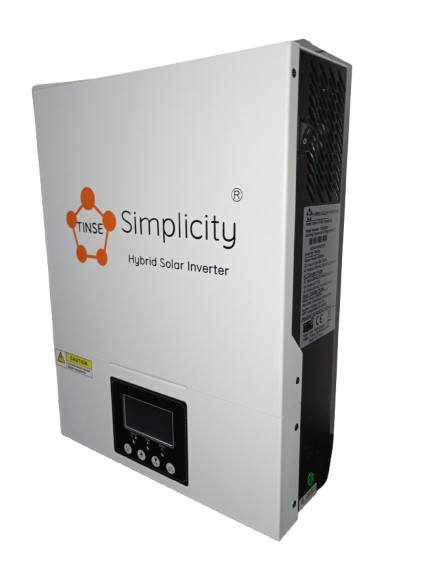

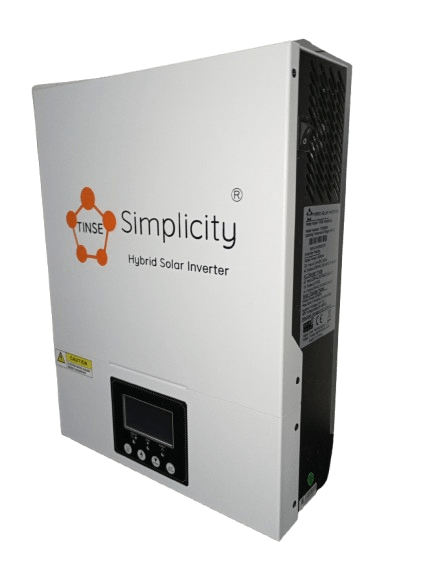

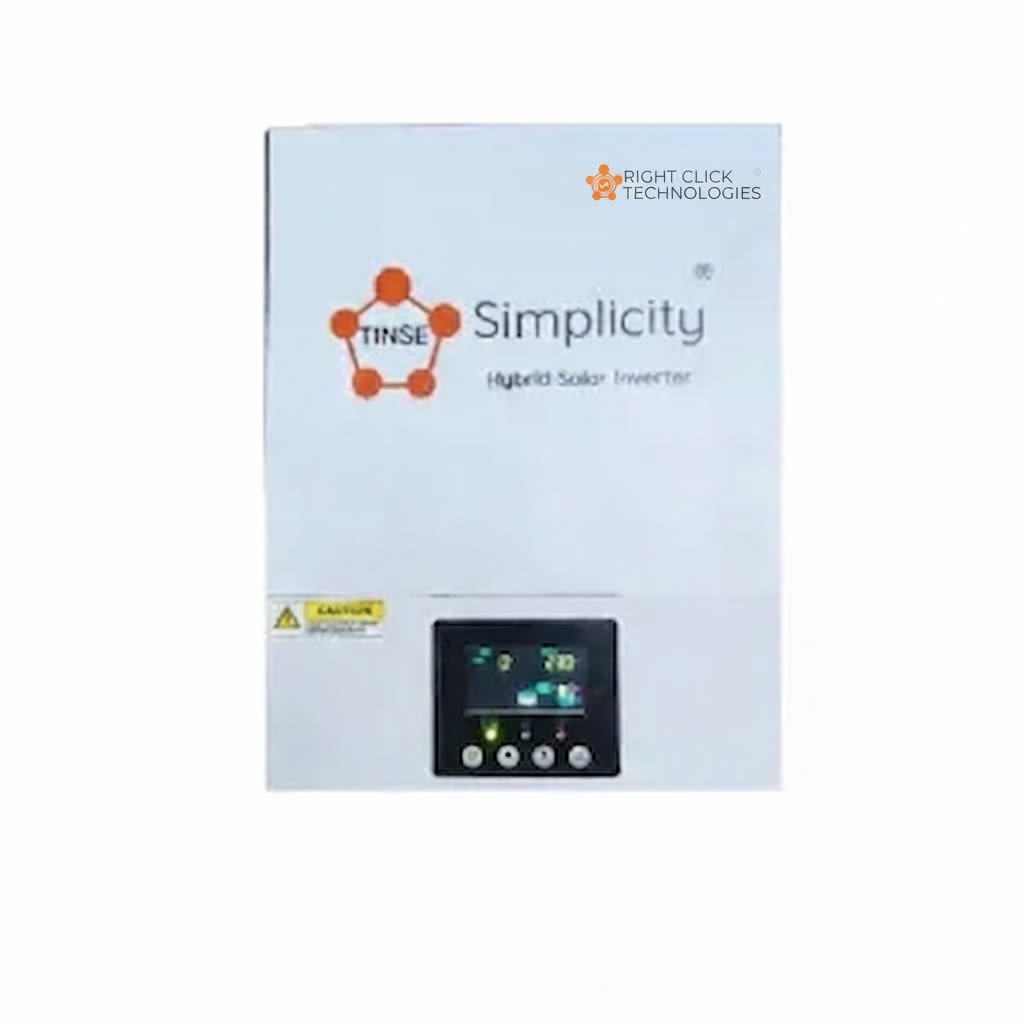

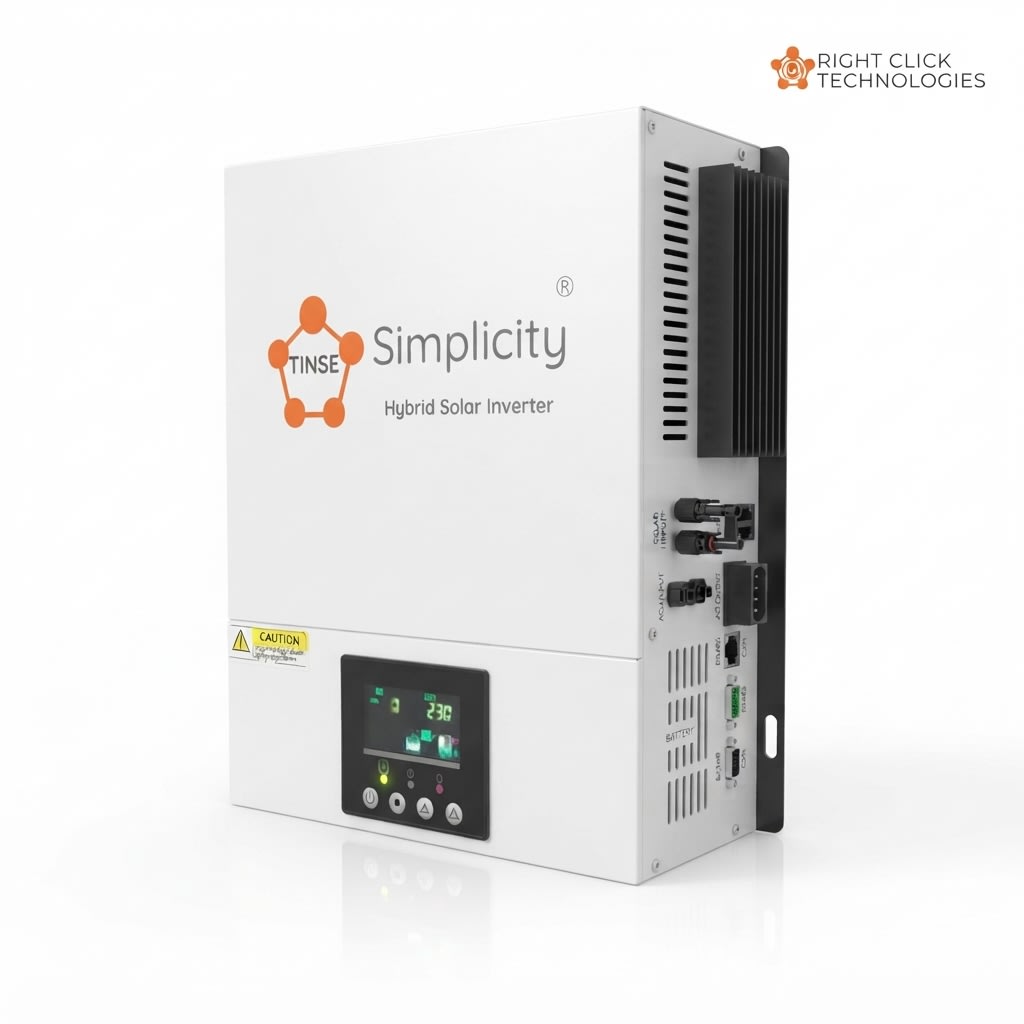

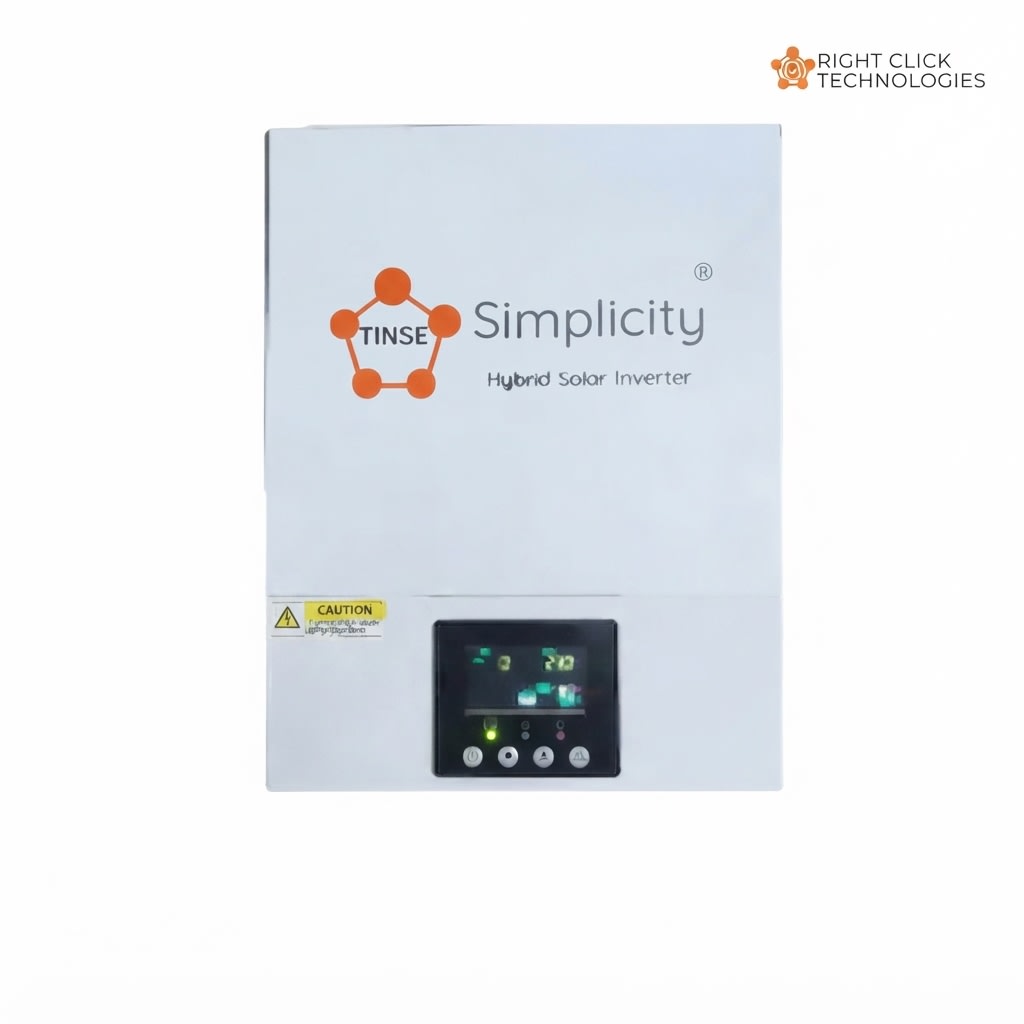

Introducing the TINSE 3KVA 24V hybrid solar inverter – an affordable and reliable solution for your power needs. With its rugged design and pure sinewave output, this inverter is perfect for homes and small businesses. The built-in 1000W 40A MPPT charge controller enables efficient charging of a 400AH battery bank*.
The transformerless design of the TINSE inverter ensures optimal battery power utilization, resulting in extended backup time. It offers flexibility with three power source options: utility, solar, or battery priority. Additionally, the inverter can be configured to automatically start a generator during low battery or absence of solar power.
Key Specifications:
– Input Voltage: 24 Volts
– Output: 230VAC
– Power factor: 0.8
– Input AC charger: 25A
– MPPT controller: 40A Voc 30~80V
– Auto restart feature when AC power recovers
The TINSE 3KVA 24V hybrid solar inverter is a versatile solution, suitable for various applications such as lighting, computers, refrigerators, fans, and more. With its simplicity and user-friendly interface, configuring the inverter is a breeze.
Experience the benefits of the TINSE hybrid solar inverter today – efficient power management, longer backup time, and peace of mind. For more detailed information, please refer to the specifications below.
Overview
Input Voltage: 24 Volts
Output: 230VAC
Power factor: 0.8
Input AC charger: 25A
MPPT controller: 40A Voc 30~80V
Auto restart while AC recovers
*When the inverter is configured with Solar and Utility charging priority and a total output charging current of 40A, it follows the guideline for efficient battery charging. As a general rule, the inverter’s charging current should be set to at least 10% of the battery bank’s capacity.
TINSE SIMPLICITY HYBRID SOLAR INVERTER’S SPECIFICATIONS
| MODEL | Simplicity |
| Capacity | 3KVA |
| Parallel Capability | NO |
| INPUT | |
| Nominal Voltage | 230V AC |
| Acceptable Voltage Range | 170-280VAC (For personal computer); 90-280vac (For home appliances) |
| Frequency | 50/60 Hz (Auto sensing) |
| OUTPUT | |
| Nominal Voltage | 220/230VAC±5% |
| Surge Power | 2000VA |
| Frequency | 50Hz (Auto sensing) |
| Waveform | Pure sinewave |
| Transfer Time | 10ms(For personal computer); 20ms (For home appliances) |
| Peak Efficiency (PV to INV) | 97% |
| Peak Efficiency (Batter to INV) | 90%-93% |
| Overload Protection | 5s@>=150% load; 10s@110%-150% load |
| Crest Factor | 3:01 |
| Admissible Power Factor | 0.8 |
| BATTERY | |
| Battery Voltage | 24VDC |
| Floating Charge Voltage | 27VDC |
| Over Charge Protection | 31VDC |
| Charging Method | CC/CV |
| Solar Charge & AC Charger | |
| Solar Charge Type | MPPT |
| Max. PV Array Power | 1000W |
| Max. PV Array Open Circuit Voltage | 102VDC |
| PV Array MPPT Voltage Range | 30-80VDC |
| Max. Solar Input Current | 15A |
| Max. Solar Charge Current | 40A |
| Max. AC Charge Current | 25A |
| PHYSICAL | |
| Dimensions D x W x H (mm) | 95*240*316 |
| Net Weight (Kg) | 7 |
| Communication Interface | RS232 |
| ENVIRONMENT | |
| Operating Temperature Range | |
| Storage Temperature | |
| Humidity | 5% to 95% Relative Humidity (Non-Condensing) |
