Suntree AC Surge Protector 20kA

Description

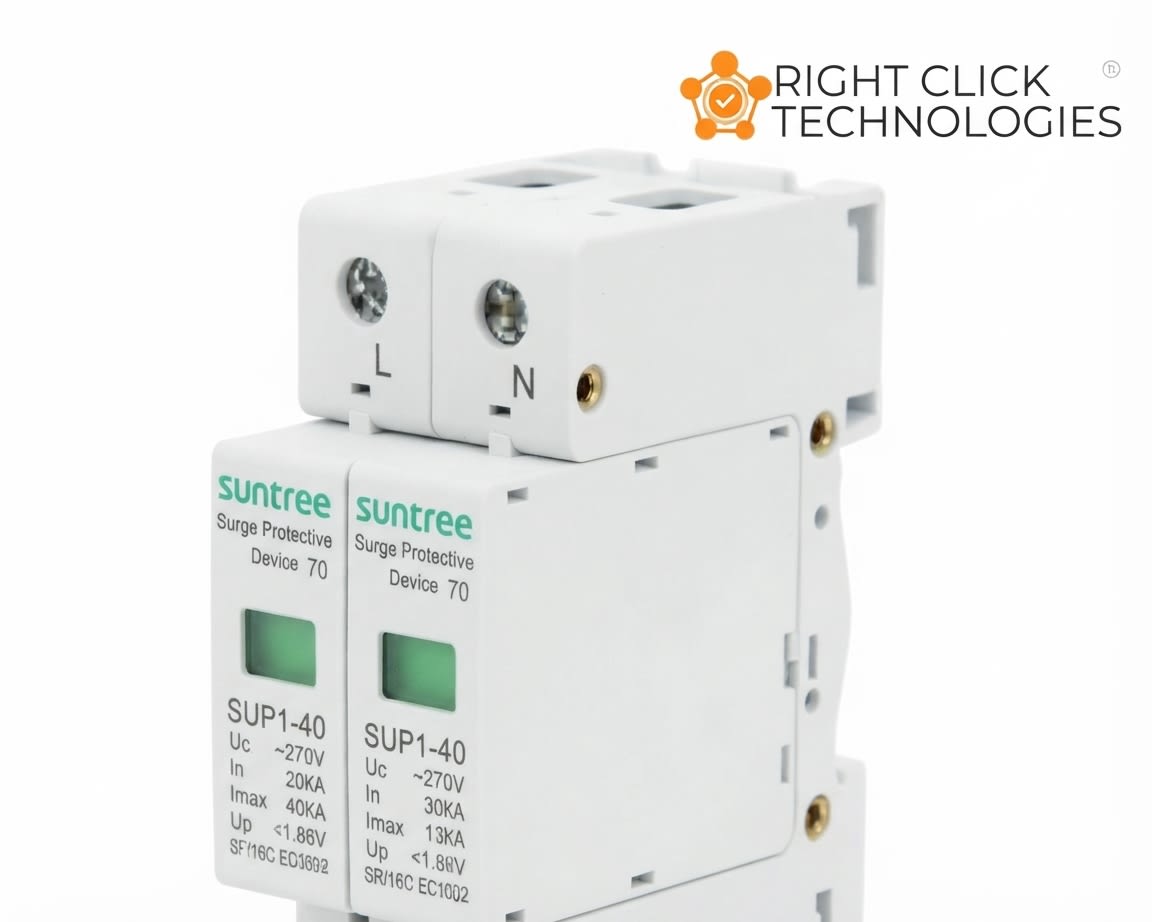

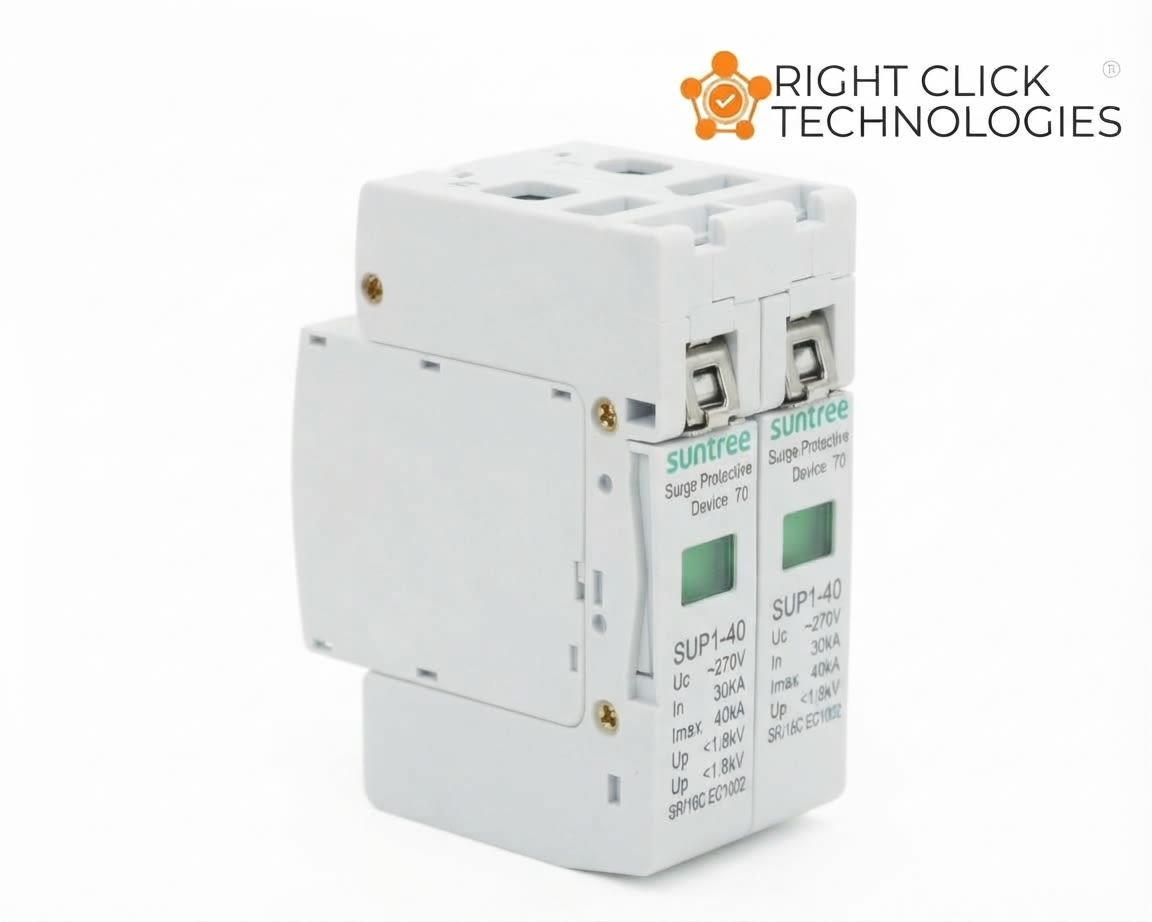

Suntree AC Surge Protector 20kA

Suntree AC Surge Protector 20KA is a high-performance surge protector designed to safeguard electrical systems from harmful voltage spikes. Voltage surges can occur due to lightning strikes, sudden switching of utility power, or transient spikes from heavy machinery. This 2-pole surge protection device (SPD) safely diverts excess voltage away from connected equipment, preventing damage and extending the life of sensitive electronics. It is ideal for homes, offices, industrial setups, and solar installations where reliable surge protection is critical.

The device is compliant with international safety standards, including IEC 61643-1 and GB18802.1, guaranteeing reliable performance across residential, commercial, and industrial applications. Its durable construction enables it to withstand harsh environmental conditions and wide temperature ranges, providing long-term reliability. By investing in the Suntree AC Surge Protector 20kA, users can protect their electrical systems from surges, reduce repair costs, and ensure uninterrupted operation of their devices.

Key Features

• High Surge Discharge Capacity: Provides robust protection with a maximum discharge current rating (Imax) of 40kA and a nominal discharge current (In) of 20kA.

• Rated Operating Voltage: Engineered with a maximum continuous operating voltage (Uc) of 275VAC, making it well-suited for standard single-phase AC power systems.

• Compact Modular Design: Built as a 2-pole (2P) DIN-rail mountable device with clear visual status indicators and standard screw terminal connections for straightforward installation.

TECHNICAL SPECIFICATION
