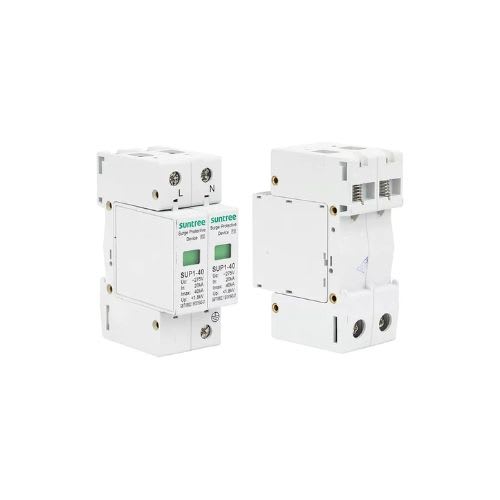

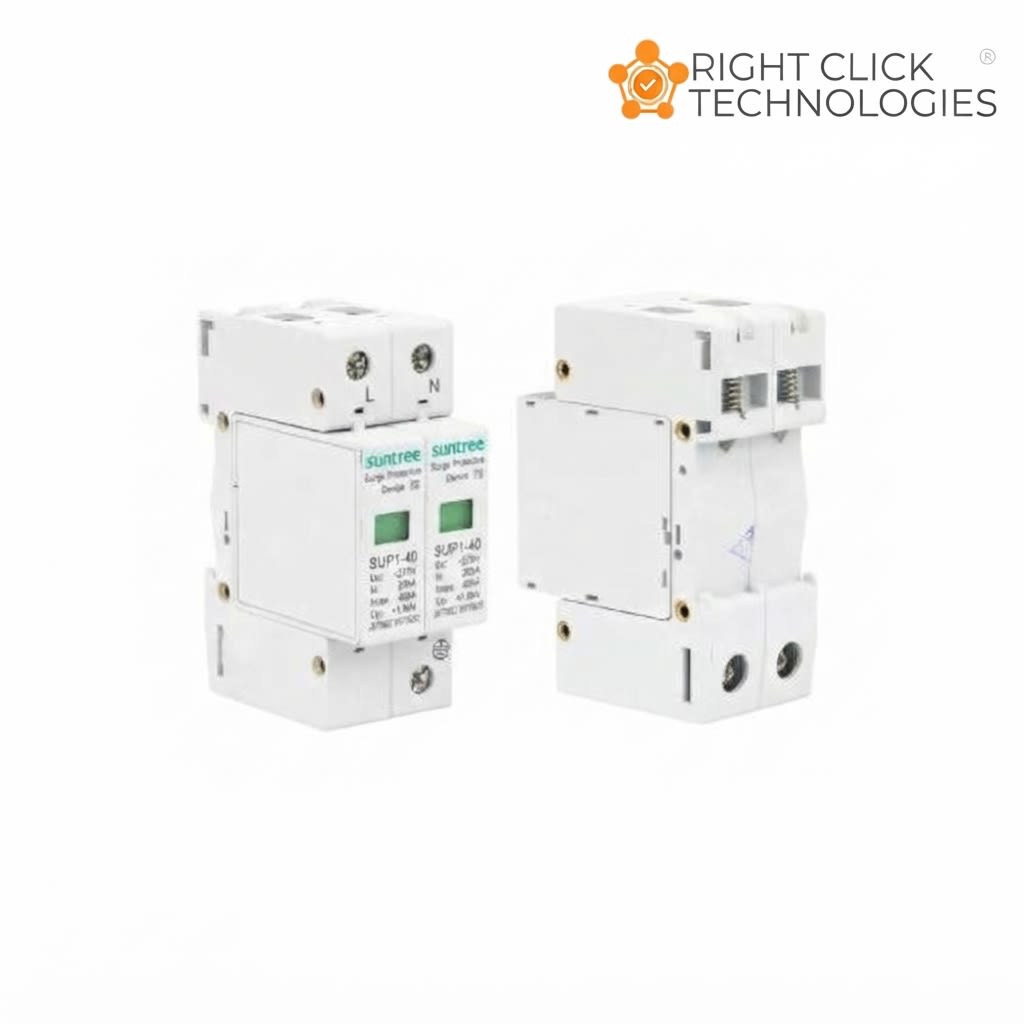

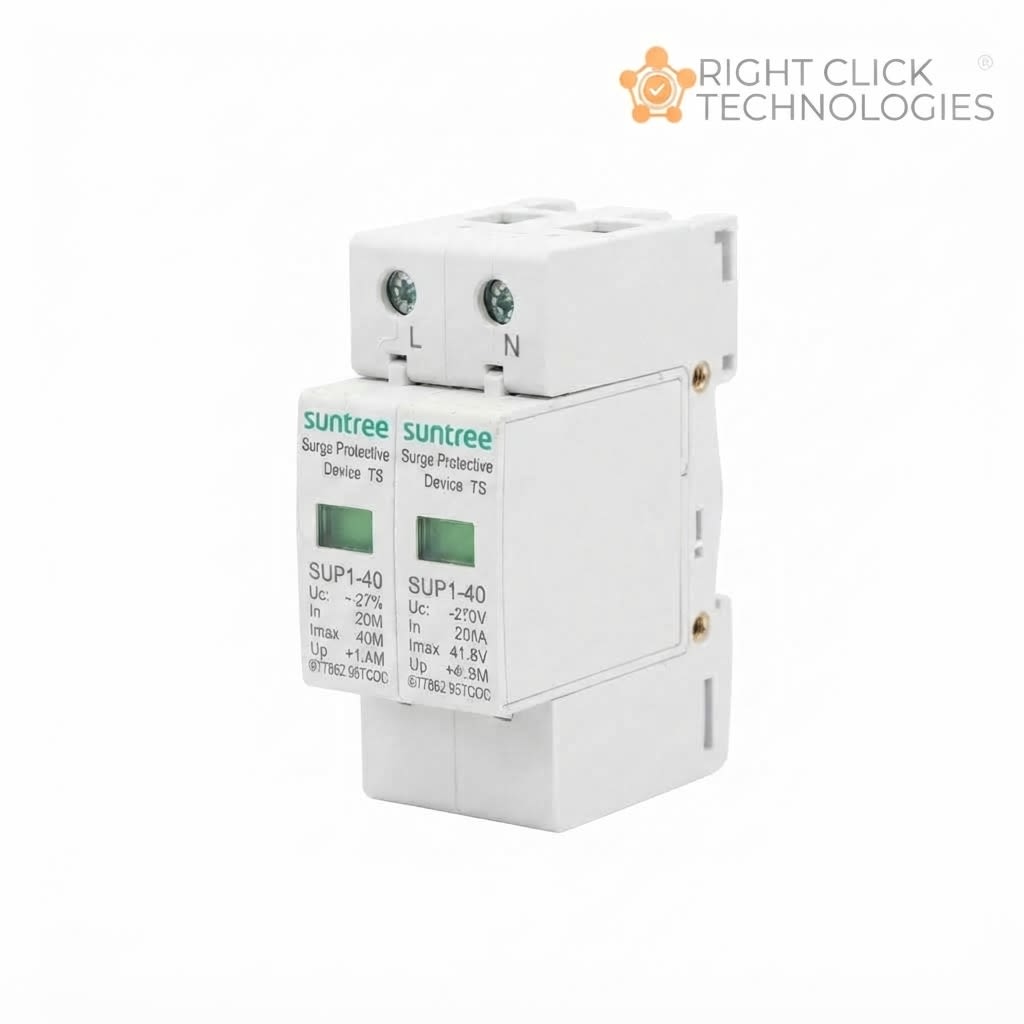

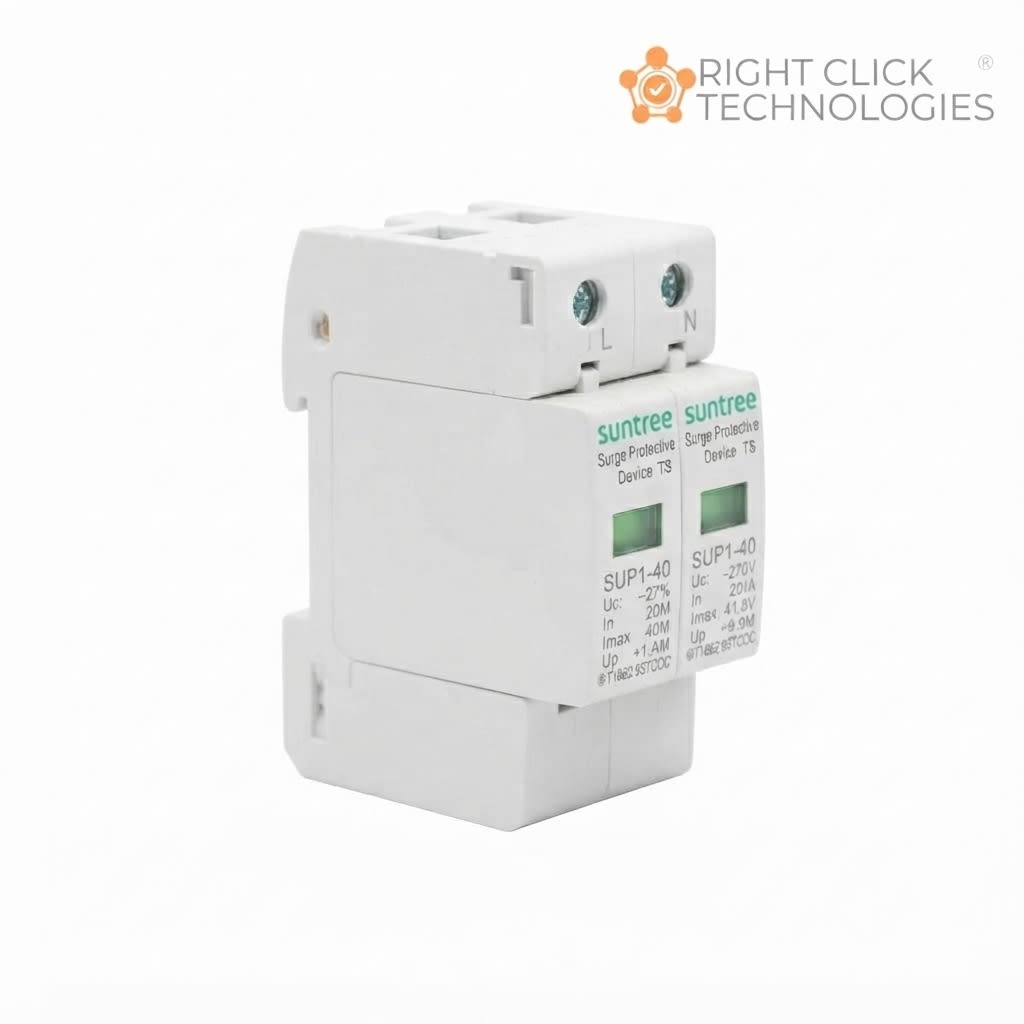

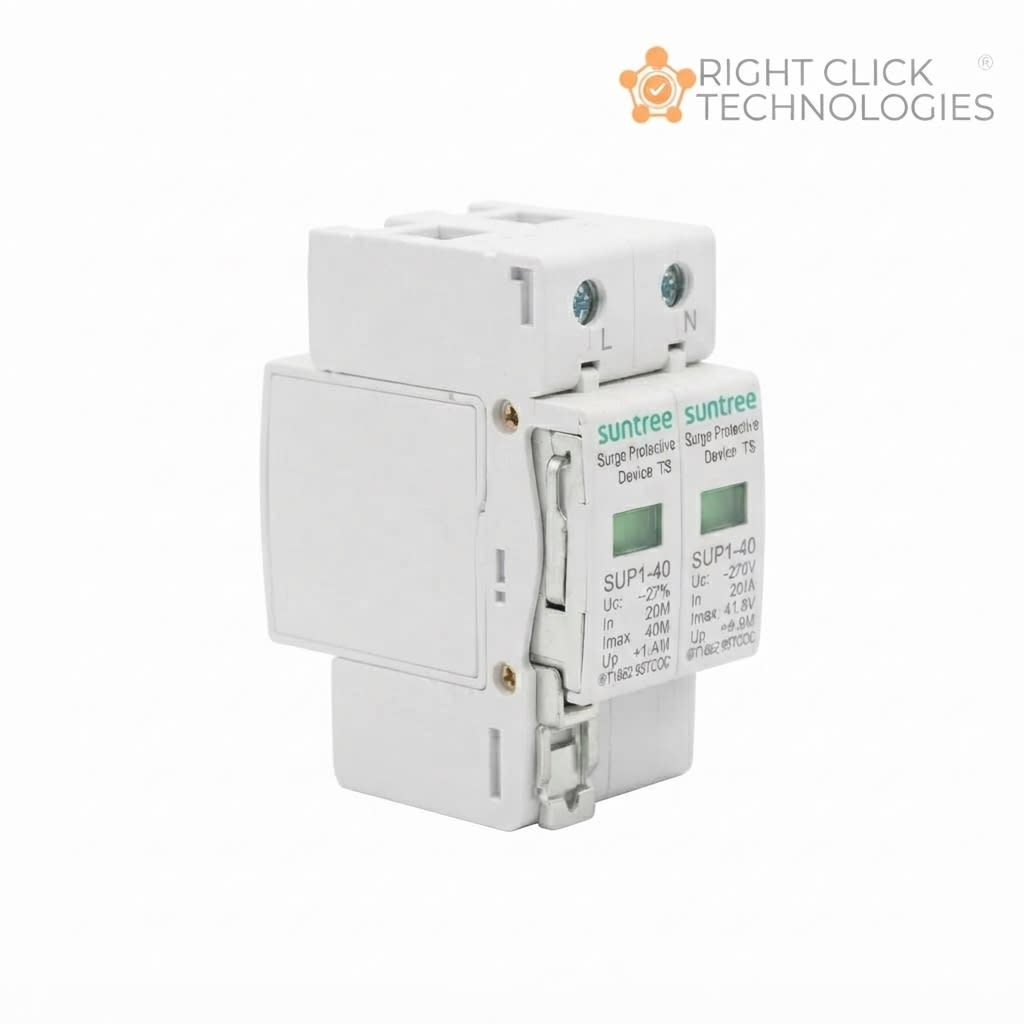

The Suntree 2P 275VAC Surge Protector 20 kA safeguards electrical systems from voltage spikes, surges, and lightning. Compact, DIN-rail mounted, and featuring a green/red status indicator, it is ideal for homes, offices, solar setups, and industrial panels, providing fast and reliable protection for sensitive equipment.
Suntree 2P 275VAC Surge Protector 20KA is a highly reliable device designed to protect electrical systems from sudden voltage spikes, surges, and lightning-induced overvoltages. It safeguards both the live and neutral lines in single-phase AC circuits. By quickly clamping excessive voltage and diverting it safely to the ground, it prevents damage to sensitive equipment. The surge protector is suitable for residential, commercial, and light industrial applications where voltage fluctuations can compromise electrical systems.
This device is rated at 275 VAC and can handle a nominal discharge current of 20 kA, with a peak capability of up to 40 kA during extreme transient events. It reacts in nanoseconds, making it extremely fast in protecting connected devices such as computers, televisions, solar inverters, PLCs, or industrial automation systems. Its high surge capacity ensures that even strong lightning strikes or switching surges do not harm equipment, providing peace of mind to users.
The surge protector is built from flame-retardant materials, ensuring durability and fire safety. It includes a clear status indicator that shows whether the unit is functioning properly. A green indicator confirms normal operation, while a red indicator signals that replacement is necessary. This visual feedback makes monitoring simple, even for non-technical users.
Suntree 2P 275VAC Surge Installation is straightforward because the device is DIN-rail mounted, allowing it to fit neatly into standard distribution boards. It occupies minimal space while providing maximum protection. Suntree 2P 275VAC Surge This compact design is ideal for both new installations and retrofitting existing electrical panels with backup powers
TECHNICAL SPECIFICATION
| SPECIFICATION | WIDE/RANGE |
|---|---|
| Device Type | 2‑Pole AC SPD |
| Rated Voltage | 275 VAC |
| Nominal Discharge Current | 20 kA |
| Max Discharge Current | 40 kA |
| Response Time | ≤ 25 ns |
| Protection Modes | L‑N, L‑PE, N‑PE |
| Mounting | DIN Rail |
| Status Indicator | Green/Red |
| Standards | IEC 61643‑1 |
| Weight | 0.250 kg |
|---|---|
| Dimensions | 9 × 4 × 6 cm |
