24 way IP40 indoor distribution enclosure built with durable ABS plastic and transparent cover. Supports inverter protection panels and structured circuit breaker installation.
₦18,225.00
The Suntree 24 Way IP40 STSM Distribution Box provides a reliable enclosure solution for electricians and solar installers working on organized indoor distribution panel installations. Designed to support safe mounting of modular protection devices, it improves wiring arrangement, system reliability, and long-term maintainability.
Supporting up to 24 circuit breaker ways, this distribution enclosure allows installers to manage multiple electrical circuits inside a single compact unit. The well-organized interior maintains neat cable routing, simplifying troubleshooting and maintenance work during system servicing.

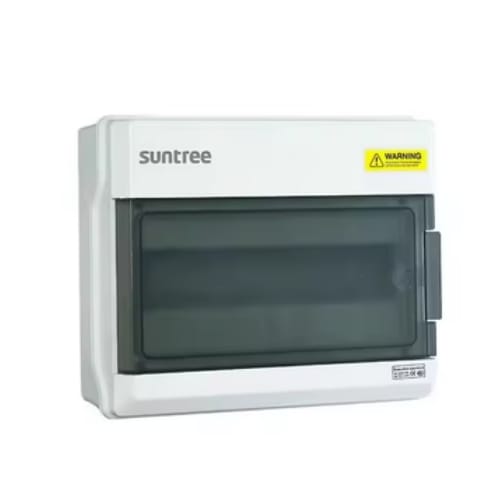

The enclosure body is constructed from high-strength ABS engineering plastic, delivering strong insulation performance and impact resistance during long-term indoor operation. The transparent polycarbonate front cover allows quick visual inspection of breaker status without opening the enclosure. This ABS and PC material combination enhances durability while improving monitoring convenience in distribution environments.
With an IP40 protection rating, the enclosure prevents entry of solid particles larger than 1 millimeter and reduces accidental contact with internal components. This makes it well-suited for indoor inverter protection panels, AC distribution boards, and solar accessory installations where environmental sealing beyond indoor conditions is not required.
The enclosure supports both surface-mounted and flush-mounted wall installation, allowing installers to adapt to different project requirements. The integrated DIN rail structure accommodates most standard miniature circuit breakers and modular electrical accessories used in inverter and backup power systems.
The internal neutral and grounding arrangement improves installation safety and supports structured wiring layout during panel configuration. This thoughtful design helps reduce installation errors and ensures compliance with electrical safety standards.
| Specification | Detail |
|---|---|
| Model | SUNDB24WAY |
| Number of Ways | 24 |
| Protection Level | IP40 |
| Material | ABS Body with PC Cover |
| Installation | Surface Mount and Flush Mount |
| Application | Indoor Electrical Distribution |
| Color | White |
| Certification | CE, TUV, SAA Compliant Enclosure Structure |
The Suntree 24 Way IP40 STSM Distribution Box is suitable for electricians and solar installers working on organized indoor distribution panel installations.
| Weight | 2.2 kg |
|---|---|
| Dimensions | 12 × 30 × 43 cm |
