18 way IP65 waterproof distribution box for indoor and outdoor electrical installations. UV resistant ABS enclosure with transparent cover supports solar and inverter protection panel setup.
₦27,675.00

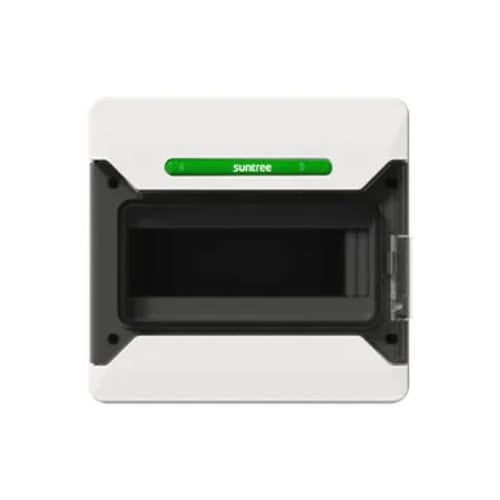

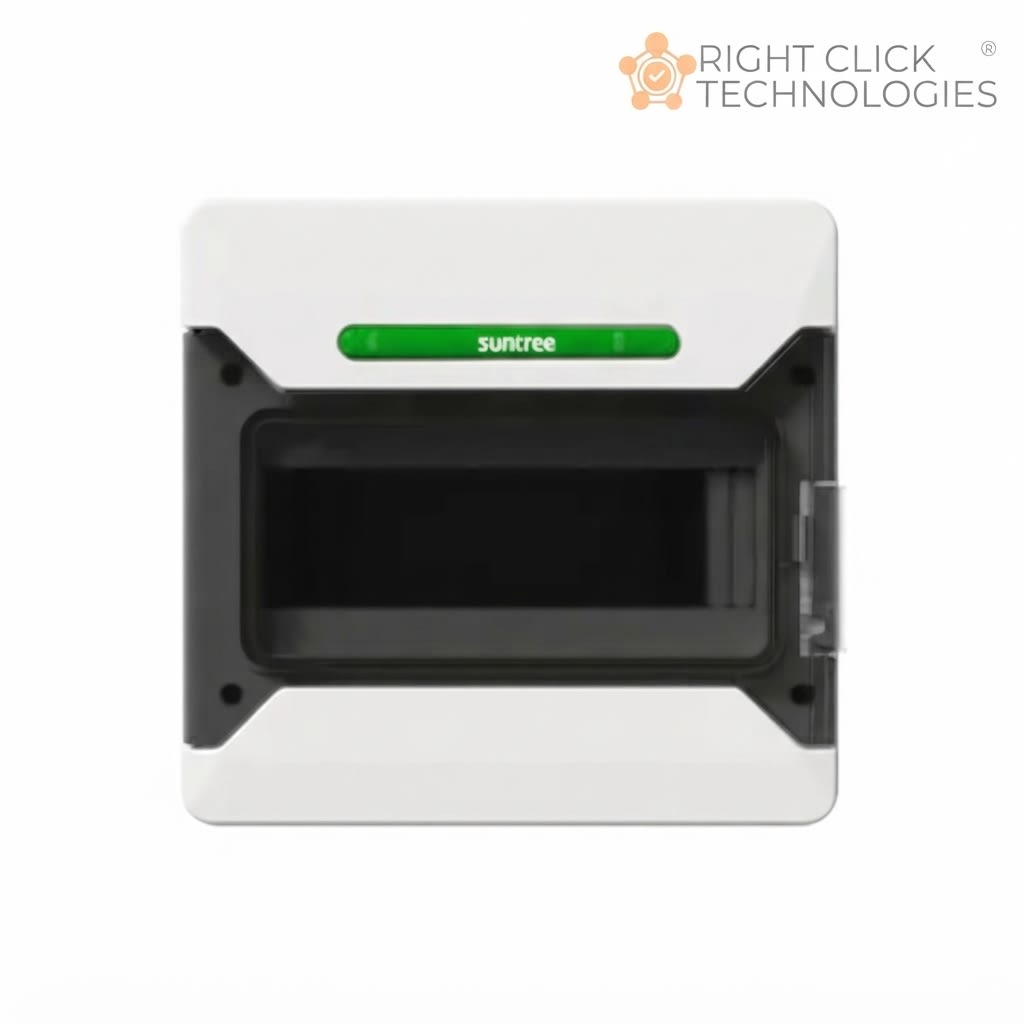

The Suntree 18 Way IP65 PMHA Distribution Box delivers dependable enclosure protection for professional solar installers and electrical technicians working in demanding environments. Designed to house circuit breakers and modular electrical components, it ensures safety, organization, and long-term reliability for both residential and commercial applications.
Supporting up to 18 ways, this distribution box allows installers to manage multiple protection devices inside a single enclosure. The organized wiring layout simplifies maintenance and supports future system expansion without congestion.

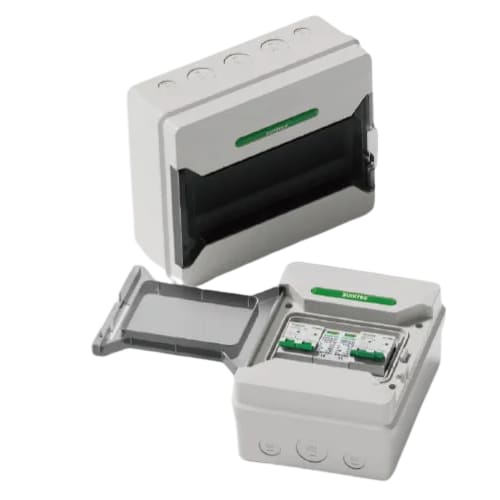

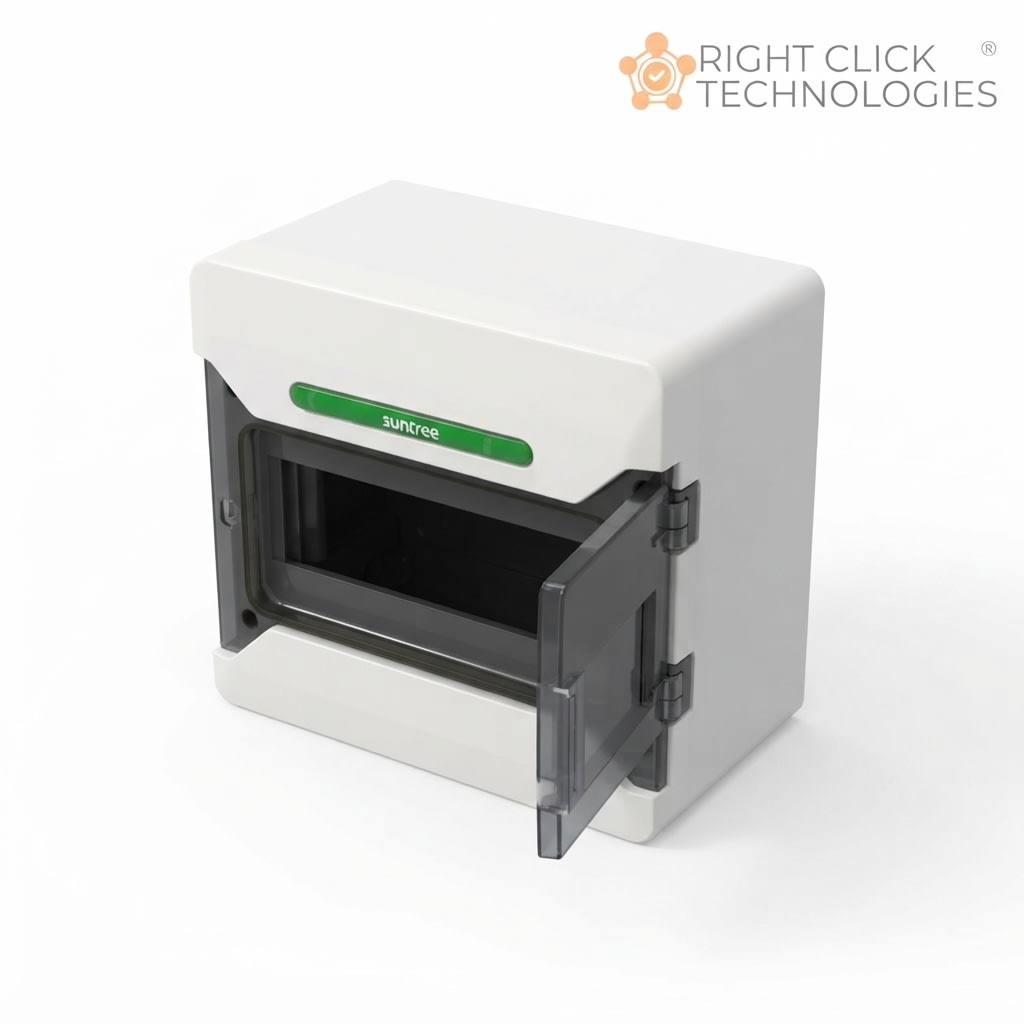

The enclosure body is constructed from high-strength ABS engineering plastic, while the front cover features transparent polycarbonate material. This combination delivers exceptional impact resistance and allows quick visual inspection of installed breakers without opening the enclosure. The materials also provide UV resistance, making the unit suitable for prolonged outdoor exposure.
With an IP65 protection rating, this enclosure prevents dust entry and withstands water jets from any direction. It is ideal for solar combiner protection panels, outdoor inverter backup systems, and industrial electrical distribution setups where environmental exposure is a concern.
The PMHA enclosure includes pre-formed cable entry knockouts that simplify installation work and reduce setup time. A lockable cover design prevents unauthorized access to internal electrical components, enhancing operational safety in public or exposed locations.
The internal DIN rail supports standard miniature circuit breakers, surge protectors, isolators, and other modular devices commonly used in solar and electrical protection systems. The wall-mounted structure provides installation flexibility across residential and commercial applications.
| Specification | Details |
|---|---|
| Model | SUNDB18WAYIP65 |
| Number of ways | 18 |
| Protection level | IP65 |
| Material | ABS body with PC transparent cover |
| Installation | Surface mount wall installation |
| Application | Indoor and outdoor electrical distribution |
| Color | White with transparent door |
| Certification | CE, TUV, SAA compliant enclosure structure |
The Suntree 18 Way PMHA IP65 Distribution Box provides dependable enclosure protection for professional solar installers and electrical technicians working in demanding installation environments.
| Weight | 1.8 kg |
|---|---|
| Dimensions | 42.5 × 30 × 15.5 cm |
