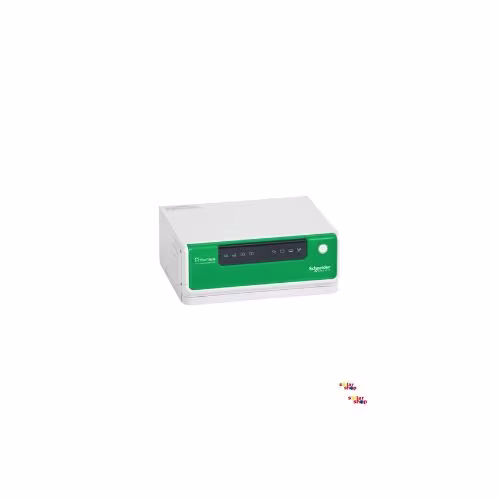

The Schneider Homaya 3000VA Hybrid Inverter is a reliable solar power solution with a 24V battery system and built-in MPPT charge controller. It delivers pure sine wave output for safe use with sensitive electronics and supports solar, battery, and generator/grid input. Ideal for homes, offices, and small businesses seeking stable off-grid or backup power.
The Schneider Homaya Solar Inverter 3000VAV is a reliable and efficient off-grid solar power solution designed to deliver stable electricity for homes, offices, and small businesses. Manufactured by Schneider Electric, a global leader in energy management, this hybrid inverter system intelligently combines solar, battery, and generator or grid input into one unit for uninterrupted power supply.
With a 3000VA (3kVA) rated capacity and a 24V battery system, the Schneider Homaya Solar Inverter is ideal for powering essential appliances such as lighting, televisions, fans, computers, refrigerators, and small pumping machines. Its pure sine wave output ensures clean and safe electricity for sensitive electronic devices.
The system features an integrated MPPT solar charge controller that maximizes energy harvest from solar panels and improves overall system efficiency. It supports both solar and AC charging, allowing batteries to be recharged using solar energy, a generator, or utility power when available.
Designed for durability and ease of use, the Schneider Homaya Solar Inverter includes built-in protection against overload, short circuits, over-temperature, and deep battery discharge. The intelligent LCD display provides real-time system information such as battery status, solar input, load level, and fault alerts for easy monitoring and control.
TECHNICAL SPECIFICATION
| Feature | Specification |
|---|---|
| Product Name | Schneider Homaya Hybrid System |
| Brand | Schneider Electric |
| Model | Homaya Hybrid 3000VA |
| Inverter Type | Hybrid (Solar + Battery + AC Input) |
| Rated Power | 3000VA / 3000W (approx.) |
| Output Voltage | 230V AC |
| Output Frequency | 50Hz |
| Output Waveform | Pure Sine Wave |
| Battery Voltage | 24V DC |
| Recommended Battery Type | Lead-acid / Tubular / Gel / AGM / Lithium (24V bank) |
| Solar Charge Controller Type | MPPT |
| Max Solar Panel Power | Up to 3000W (model-dependent) |
| Max PV Input Voltage | 145V DC (approx.) |
| MPPT Operating Range | 60V – 115V DC |
| Max Solar Charging Current | 100A (approx.) |
| AC Charging Support | Yes (Grid or Generator) |
| Transfer Time | ≤ 10 ms |
| Efficiency | Up to 95% |
| Display | LCD with LED Indicators |
| Protections | Overload, Short Circuit, Over-temperature, Overcharge, Deep Discharge |
| Communication Port | USB / RS232 (model-dependent) |
| Cooling | Smart Fan Cooling |
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -15°C to 60°C |
| Mounting Type | Wall-mounted / Floor-standing |
| Application | Homes, Offices, Shops, Schools, Clinics |
| Country of Manufacture | Schneider Electric Global Manufacturing |
| Warranty | 1 – 2 Years (region-dependent) |
| Weight | 25 kg |
|---|---|
| Dimensions | 52 × 33 × 18 cm |
