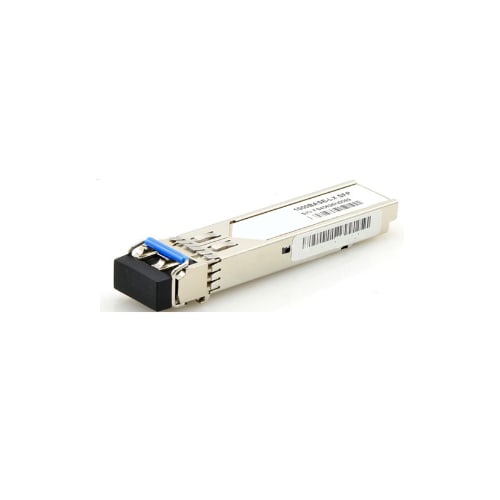

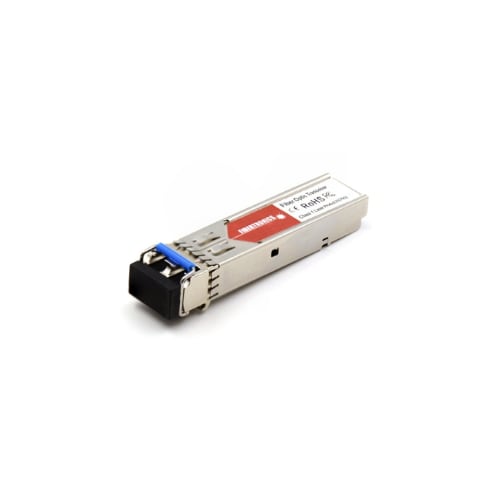

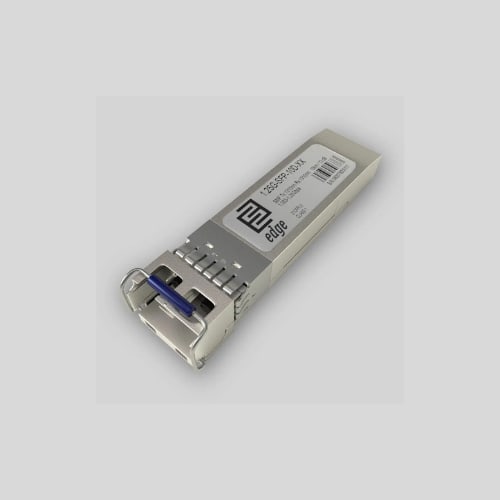

The Huawei eSFP GE Single‑Mode Module 1310 nm 10 km LC delivers reliable 1 Gbps fiber connectivity for long‑distance networks. Designed for enterprise switches and routers, it supports Digital Diagnostic Monitoring (DDM) for real‑time performance checks and is hot‑swappable for easy installation. Ideal for campus backbones and building‑to‑building links using single‑mode fiber (SMF).
The Optical Transceiver eSFP GE Single‑Mode Module (1310 nm, 10 km, LC) is a high‑performance Gigabit Ethernet optical module designed for long‑distance fiber networking applications. Engineered for enterprise networks, data centers, and carrier environments, this module ensures fast, reliable, and stable communication over single‑mode fiber (SMF) connections.
Operating at 1 Gbps (1000BASE‑LX), this single‑mode transceiver provides stable and secure data transmission over distances of up to 10 kilometers. With a 1310 nm wavelength and LC duplex connector, it is ideal for building‑to‑building fiber uplinks, backbone networks, and long‑range switch or router connections in both enterprise and campus environments.
The module supports Digital Diagnostic Monitoring (DDM), which allows network administrators to track real‑time parameters such as optical power, temperature, and transceiver health. This improves network reliability and helps in preventing failures before they occur. Additionally, it is IEEE 802.3z compliant, ensuring compatibility with a wide range of Huawei switches, routers, and SFP‑enabled devices.
With Optical Transceiver eSFP GE Single‑Mode Module a hot‑swappable eSFP form factor, installation and replacement are quick and downtime‑free, making it ideal for dynamic network environments. Its compact and lightweight design also helps maintain proper airflow in server racks, supporting optimal cooling and energy efficiency.
This module is perfect for longer-distance Gigabit Ethernet connections in environments where single-mode fiber (SMF) is deployed. Typical uses include:
Uplinks between data center buildings
Backbone fiber links across campus infrastructures
Router-to-router or switch-to-switch connections up to 10 km
1 Gbps data rate (1000BASE‑LX)
10 km maximum distance over SMF
1310 nm wavelength for long‑range connectivity
LC duplex connector
Digital Diagnostic Monitoring (DDM) support
Hot‑swappable and energy‑efficient design
| Specification | Details |
|---|---|
| Module Name | SFP-GE-LX-SM1310 |
| Part Number (SKU) | 02315200 |
| Form Factor | eSFP / SFP |
| Data Rate | 1 Gbps (1000BASE-LX10/LH) |
| Wavelength | 1310 nm |
| Connector Type | LC Duplex |
| Fiber Mode | Single-Mode Fiber (SMF) |
| Maximum Distance | Up to 10 km |
| Transmit Power Range | –9 to –3 dBm |
| Receiver Sensitivity | –20 dBm |
| Extinction Ratio | ≥ 9 dB |
| Diagnostics (DDM) | Yes |
| Operating Temp Range | 0 °C to 70 °C |
| Power Consumption | < 1 W |
| Weight | 0.018 kg |
|---|---|
| Dimensions | 5.7 × 1.35 × 1.25 cm |
