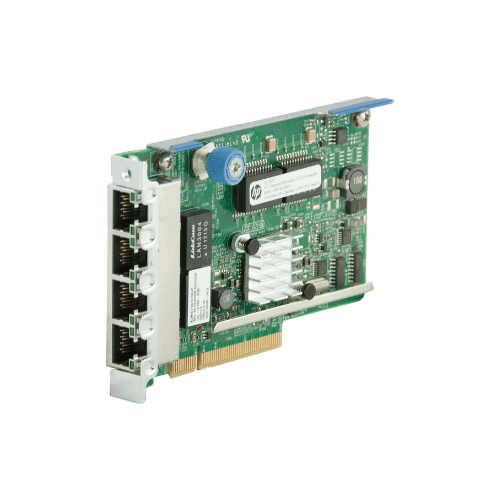

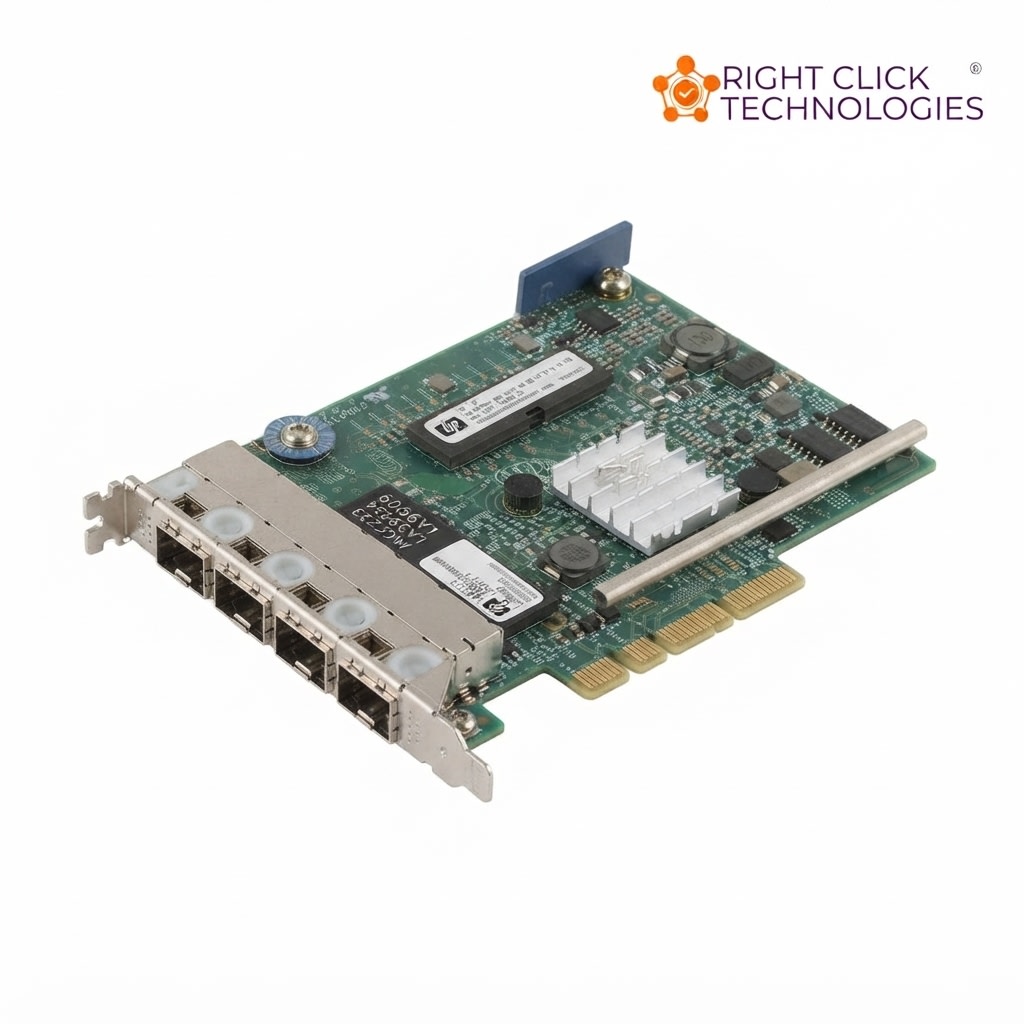

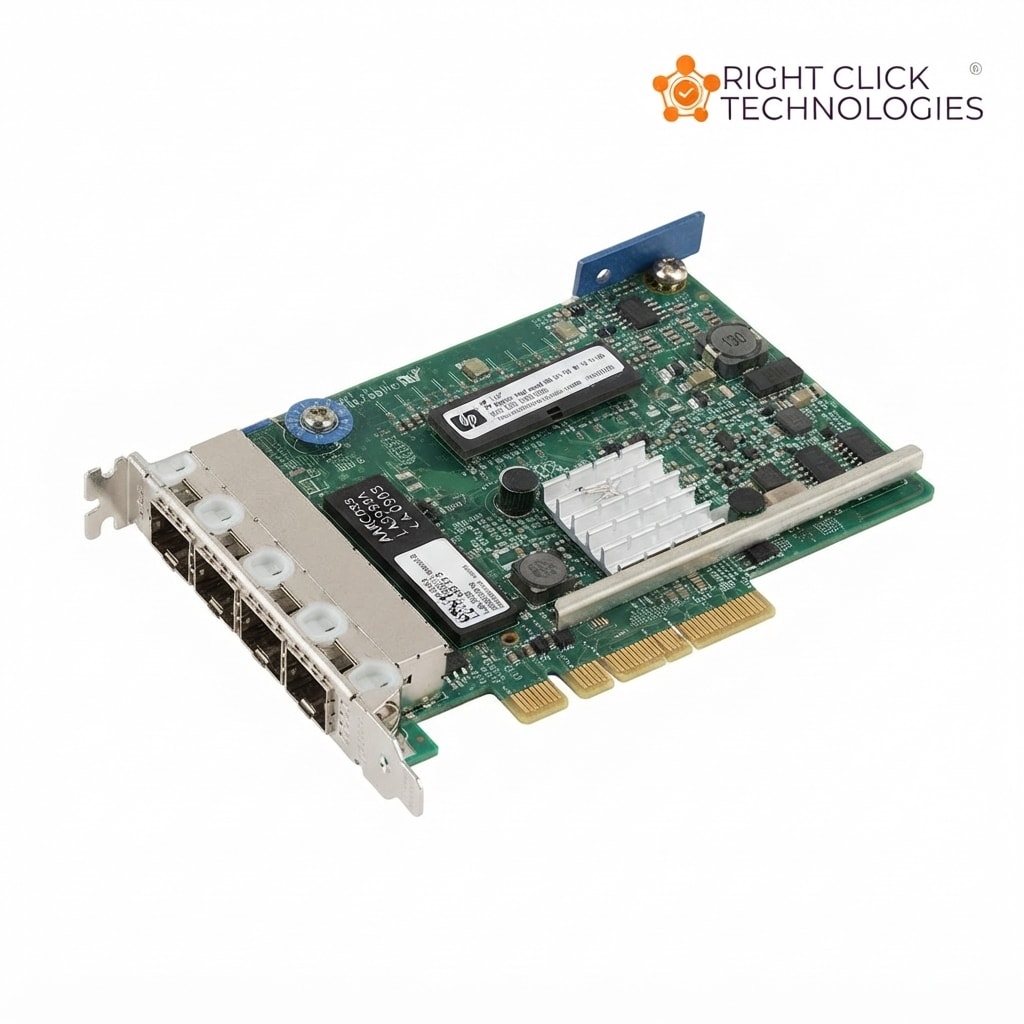

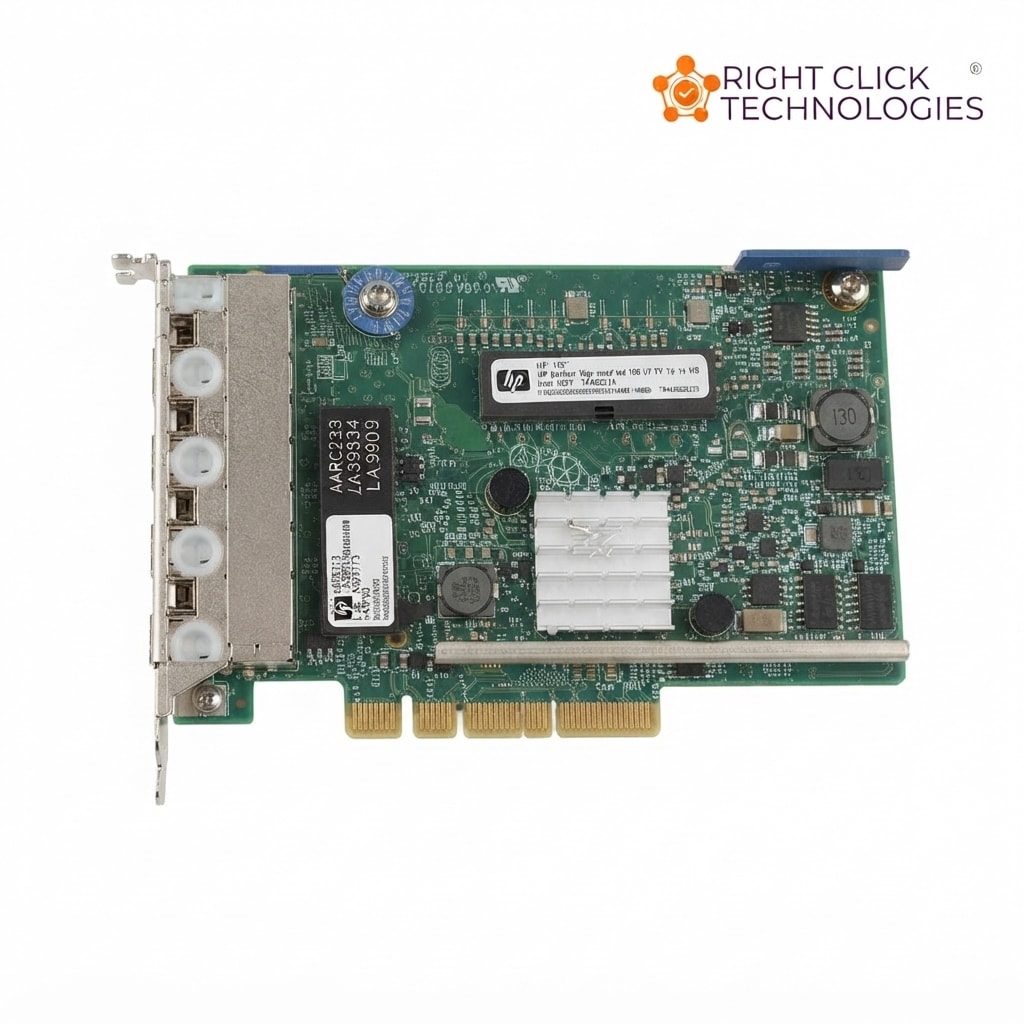

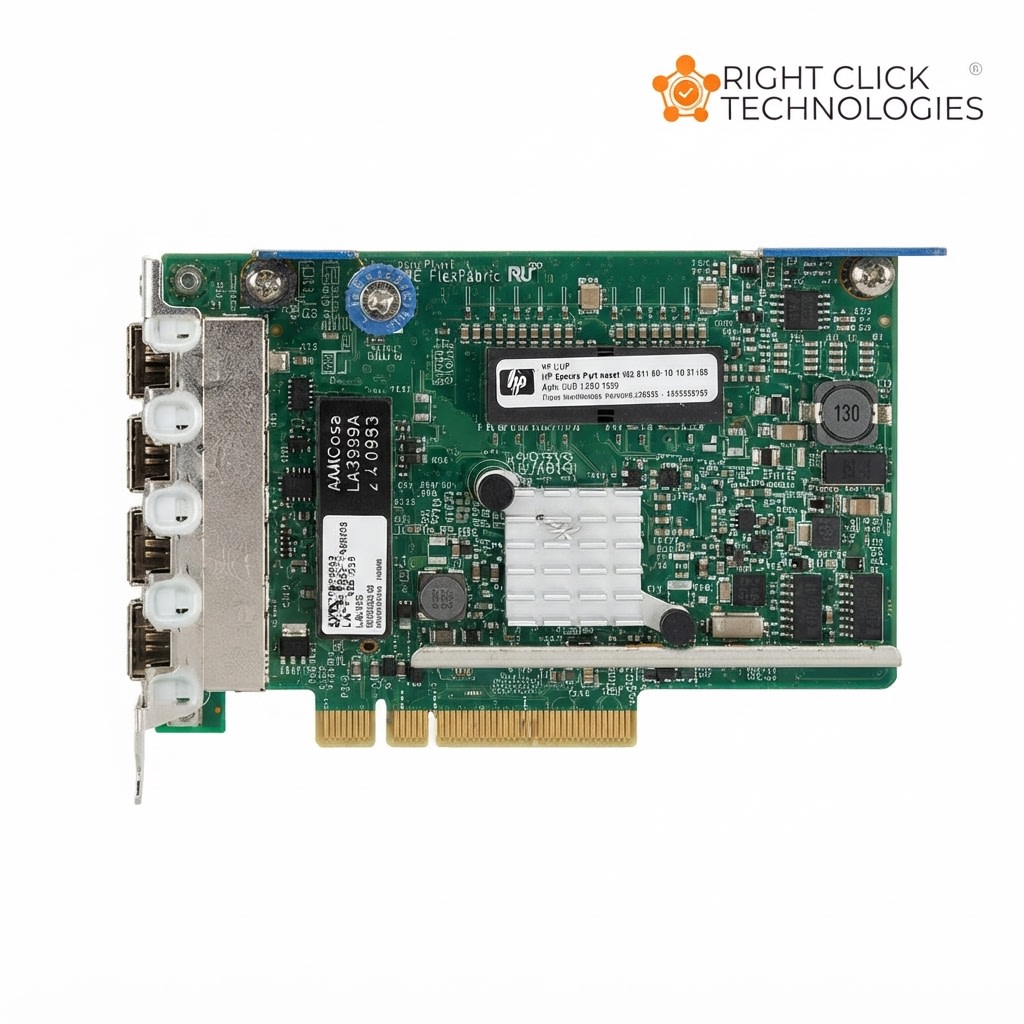

HPE Ethernet 1Gb 4-Port 331T Adapter

HPE Ethernet 1Gb 4-Port 331T Adapter – High-Performance Network Expansion for Enterprise Servers

Upgrade your server’s networking capabilities with the HPE Ethernet 1Gb 4-Port 331T Adapter, a powerful and reliable solution designed to enhance connectivity, optimize data transfer speeds, and improve overall efficiency. This quad-port Gigabit Ethernet adapter provides fast, seamless networking performance, making it an ideal choice for enterprise environments, data centers, and cloud computing infrastructures.

Whether you need to boost bandwidth, enable network redundancy, or support advanced virtualization technologies, this adapter delivers exceptional reliability and scalability. With four dedicated 1GbE ports, the HPE 331T Adapter supports multiple connections while reducing latency, ensuring smooth data transfers even in high-demand environments.

Key Features & Benefits:

• Four Gigabit Ethernet Ports: Provides an aggregate bandwidth of up to 8 Gbps (full-duplex), allowing for faster data transmissions and improved network efficiency.
• Enhanced Virtualization Support: Ideal for cloud-based applications and virtualized environments, supporting VMware Net Queue and Microsoft VMQ for optimal performance.
• Energy-Efficient Design: Built with a low-power Broadcom BCM5719 chipset, helping reduce power consumption and operational costs without compromising performance.
• Advanced Network Features: Supports VLAN tagging, Jumbo Frames, PXE boot, TCP/IP checksum offload, and IEEE 1588 precision time protocol for superior traffic management and lower CPU utilization.
• Seamless Integration: Compatible with a wide range of HPE ProLiant servers, including Gen8, Gen9, and Gen10, making deployment easy and efficient.

SPECIFICATION

Specification	Details
Network Processor / Chipset	Broadcom BCM5719
Ports	4 × 1 GbE RJ-45 (10/100/1000Base-T)
Interface / Bus	PCI Express 2.0 ×4 (Gen2)
Aggregate Bandwidth	8 Gb/s full-duplex (2 Gb/s per port)
Supported Standards / Protocols	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1Q, 802.3az, 1588, 802.1as
Power Consumption	Up to ~4.3 W under max traffic; ~1.0 W AUX power with WoL
Form Factor	Plug-in card; comes with both full-height and low-profile brackets
