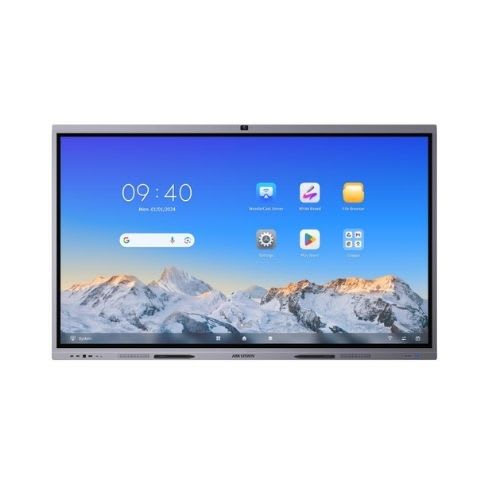

Transform how your organization presents, creates, and communicates with the powerhouse Hikvision 86-inch 4K Interactive Display. As digital collaboration moves permanently toward expansive interactive formats and multi-window work environments, smaller display screens bottleneck operational output. This massive 86-inch platform anchors your conference room, consolidating all key components into an intuitive, ultra-high-definition interactive environment.
The Hikvision 86-inch 4K Interactive Display is an enterprise-grade, massive-format smart display hub engineered to anchor high-level collaboration. Combining a giant 4K UHD presentation surface with an ultra-responsive 50-point infrared touchscreen whiteboard, an AI-powered 48MP camera, and an ecosystem backed by Android 13 EDLA, it replaces a complex web of TVs, projectors, soundbars, and external webcams with a single collaborative machine.
 This 86 flagship platform is built explicitly for:
Large Corporate Boardrooms & Conference Halls: Perfect for companies running hybrid international meetings requiring a true-to-life presentation surface.
University Lecture Theaters & Auditoriums: Ideal for educators needing screen-splitting space, crystal-clear background readability, and high-precision digital handwriting.
Executive Command Centers & Presentation Rooms: Built for data analysts, project architects, and executives displaying high-detail charts or complex floorplans side by side.
Massive 86 4K Visual Experience: Native 3840×2160 resolution under protective 9H tempered anti-glare glass with advanced 25% environmental haze reduction.
Next-Gen 50-Point Touch Precision: Infrared touch array reads text annotations down to 2 mm with an ultra-fine accuracy threshold of just 0.5 mm in under 2 milliseconds.
AI-Guided 48MP Conference Camera: Features real-time voice tracking, face detection, and smart auto-framing to naturally capture remote meeting participants.
Acoustic Voice Isolation: Integrated 8-microphone array captures human voices effortlessly up to 12 meters out while scrubbing out echo and ambient background noise.
One-Tap Wireless Casting: Quick-share presentations effortlessly via Wi-Fi 6, WonderCast, AirPlay, or rapid-tap smartphone NFC mirroring.
| Parameter | Specification Details |
| Product Model Code | DS-D5C86RB/A (WonderHub Ultra Series) |
| Screen Dimensions | 86-inch High-Hardness 9H Tempered Display |
| Native Panel Resolution | 4K Ultra-HD (3840 \times 2160Â @60 Hz) |
| Glass Architecture | Zero Lamination, Anti-Fingerprint, 25% Haze |
| Touch Sensor System | Advanced Infrared Touch (up to 50 Points) |
| Touch Latency / Accuracy | Â 2textPrecision |
| On-Board Software Hub | Android 13.0 (EDLA Certified / Optional Windows OPS Slot) |
| Hardware Core Setup | 8 GB LPDDR RAM / 128 GB High-Speed Storage |
| Integrated Camera Matrix | 48MP Photo Sensor, 8MP Video Output, up to 4K Capture |
| Audio Microphone Array | Omni-Directional 8-Array Layout with 12-Meter Range |
| Sound System Power | Dual 20 W Acoustic Drivers + 25 W Subwoofer |
| Primary Video Routing | HDMI 2.0 In |
| Data & Power Delivery | USB 3.0 |
| Wireless Transceivers | Wi-Fi 6 (Dual 2.4G/5G Bands), Bluetooth 5.1, NFC |
| Display Form Factor (W×H×D) | 196.1 cm |
| Package Shipping Form Factor | 219.7 cm |
| Net Weight / Gross Weight | 64.1 kg / 81.6 kg |
Large Hybrid Work Spaces: Allowing remote participants to feel fully present on a scale that mimics face-to-face meetings.
Interactive Architecture & Blueprint Scrums: Letting engineers pan, zoom, and sketch over ultra-dense schematics flawlessly.
Higher Education Lecture Auditoriums: Offering vast digital workspace canvas so students in the back rows never lose sight of lesson notes.
| Weight | 64.1 kg |
|---|---|
| Dimensions | 196.1 × 115.8 × 8.3 cm |
