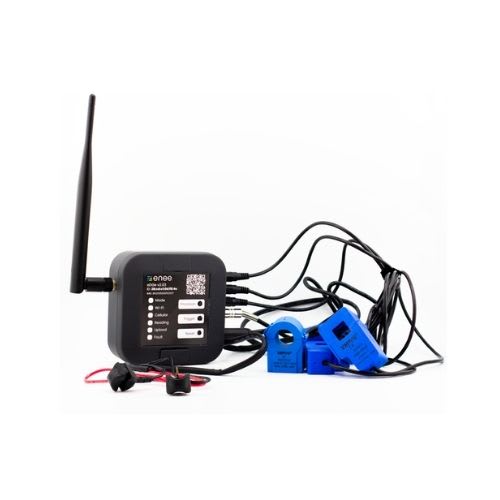

The enee eDGe Data Gateway (230V) represents a massive leap forward in hardware-agnostic energy management. Traditional remote monitoring solutions force you into a single manufacturer ecosystem, locking away valuable performance metrics if you mix inverter brands or retrofit new lithium batteries onto older systems. The eDGe Data Gateway breaks these operational silos by operating as an open, universal translator at the edge of your power distribution network.
Engineered for quick 30-minute deployments without specialized training, this gateway acts as the physical command hub for your site. It pairs effortlessly with wireless eMB individual battery sensors and clip-on current transformer (CT) clamps ranging from 100A to 1000A. Once powered by a standard 230V AC utility supply or inverter output, the eDGe gateway coordinates data capture across three independent AC streams letting you track exactly how much power is drawn from the public grid, pulled from your solar array, or consumed from a backup diesel generator.
The Enee eDGe Data Gateway (230V) is an independent, vendor-agnostic energy intelligence hub designed to act as the “fitness tracker” for complex power systems. It acts as a smart, plug-and-play central bridge that wirelessly aggregates operational data from local sensors and securely uploads it to the cloud for real-time tracking and deep analytics.
This 230V AC-powered gateway is built specifically for solar installers, commercial facility managers, hybrid power engineers, and multi-site business owners operating in regions with unstable grid infrastructure or heavy diesel generator reliance. It allows operators to unify data from any battery bank (lithium or lead-acid), inverter, generator, or grid connection into a single desktop or mobile dashboard, regardless of the make, model, or age of the equipment.
Universal Brand Compatibility: Seamlessly integrates with legacy and modern energy hardware cross-brand, bypassing the limitations of closed proprietary software.
Triple AC Monitoring Ports: Features 3 dedicated AC input connections to simultaneously track multi-source generation and loads (e.g., Grid input, Solar Inverter output, and Diesel Generator runtime).
Multi-Channel Cloud Connectivity: Equipped with an “anywhere” global roaming 4G data SIM and built-in Wi-Fi, automatically selecting the strongest available signal to maintain an uninterrupted cloud connection.
Plug-and-Play Architecture: Zero complex wiring, programming, or specialist tools required for installation; boots and provisions automatically via a mobile app.
24-Hour Battery Backup: An internal backup battery keeps the gateway recording, buffering, and transmitting critical diagnostic data for up to 24 hours during a total site power failure.
Proactive Smart Alerting: Triggers instant SMS, email, or app notifications for over 40 critical system parameters, including battery thermal runaway, inverter faults, grid outages, and generator failure-to-start.
| Feature | Specification |
| Product Name | Enee eDGe Data Gateway |
| Model Variation | 230V AC Powered Base |
| AC Input Ports | 3x AC Inputs (Supports Single-Phase / Three-Phase tracking) |
| DC Input Ports | 2x DC Inputs (For auxiliary current & voltage clips) |
| Wireless Sensor Support | eMB Smart Sensors, eME DC Monitors, eME AC Monitors |
| Primary Connectivity | Built-in Roaming 4G LTE Data SIM + Wi-Fi |
| Local Intelligence | Edge computing processing & anomaly detection |
| Data Redundancy | Local data logging with cloud synchronization upon connection |
| Internal Backup Battery | Up to 24 Hours runtime during primary power loss |
| Installation Mounting | Wall-mountable, compact plug-and-play profile |
| Dashboard Interface | Proteus Cloud Platform (Mobile App & Desktop Enterprise Portal) |
Managing a hybrid solar site without centralized data means operating blind, often discovering system errors only after the batteries have drained or equipment has failed. The Enee eDGe Data Gateway eliminates this operational risk by translating fragmented hardware signals into clear, actionable financial and technical insights.
It is the most cost-effective way to transition from reactive troubleshooting to highly optimized, preventative maintenance.
Commercial & Industrial (C&I) Solar Sites: Centralizing telemetry across multi-kilowatt arrays running mixed inverter topologies.
Telecom Base Stations & Microgrids: Maintaining tight operational control and remote auditing over unmanned, isolated power infrastructure.
Diesel-to-Solar Hybrid Transitions: Tracking exact fuel offset metrics and generator run-hours to justify solar expansion and ROI calculations.
Commercial Banking & Retail Chains: Managing power uptime and real-time energy profile analytics across thousands of distributed branches from a single corporate dashboard.
| Weight | 0.45 kg |
|---|---|
| Dimensions | 14.0 × 9.0 × 3.5 cm |
| Service Subscription | Hardware only (Self Managed), Enterprise Site Management |
