Deye 136kW Three-Phase String Inverter with 8 MPPT delivers high-efficiency AC power for large commercial and industrial solar systems. With advanced MPPT tracking, smart monitoring, and reliable grid performance, it maximizes solar energy yield and supports flexible PV string layouts for large-scale projects.
₦6,550,000.00

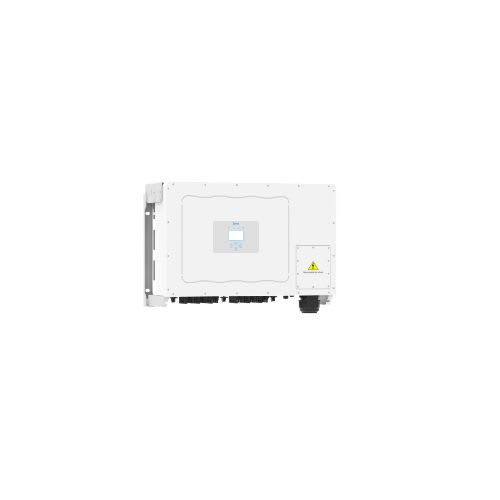

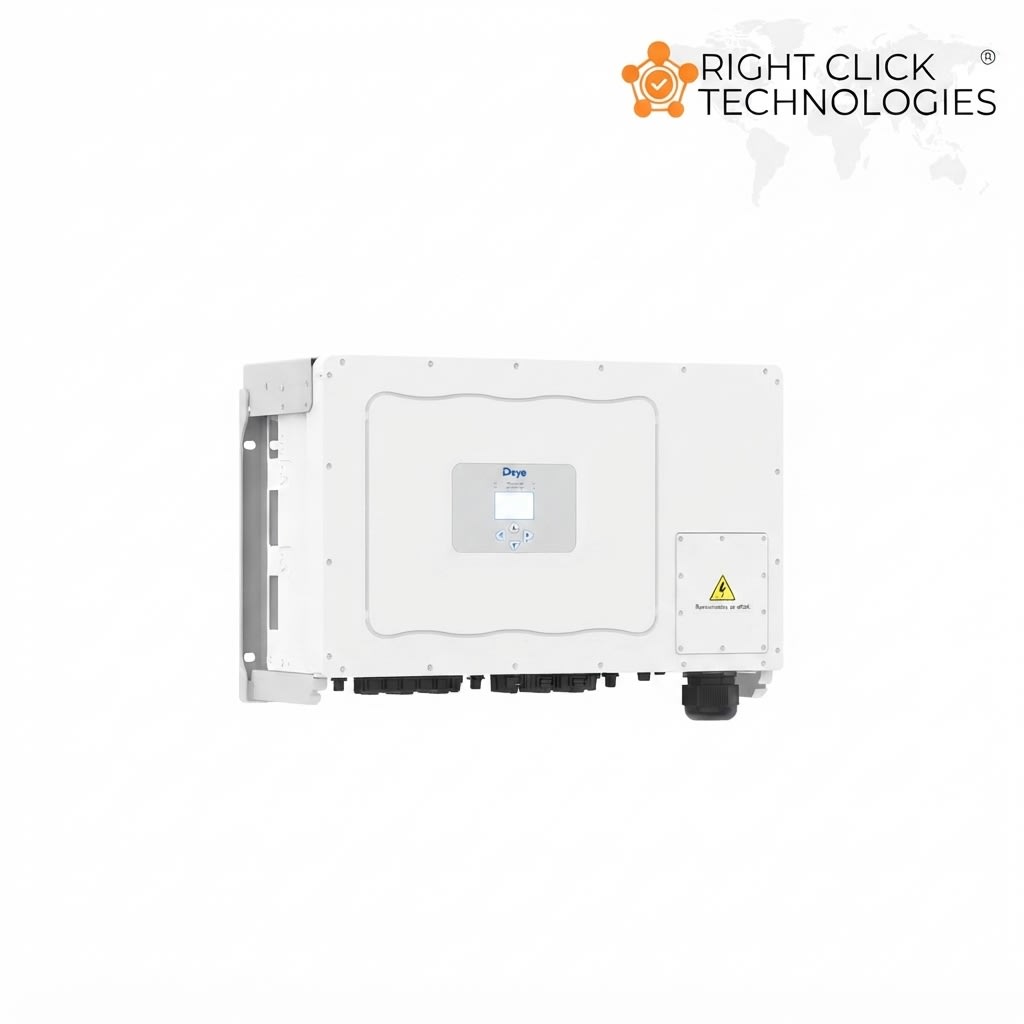

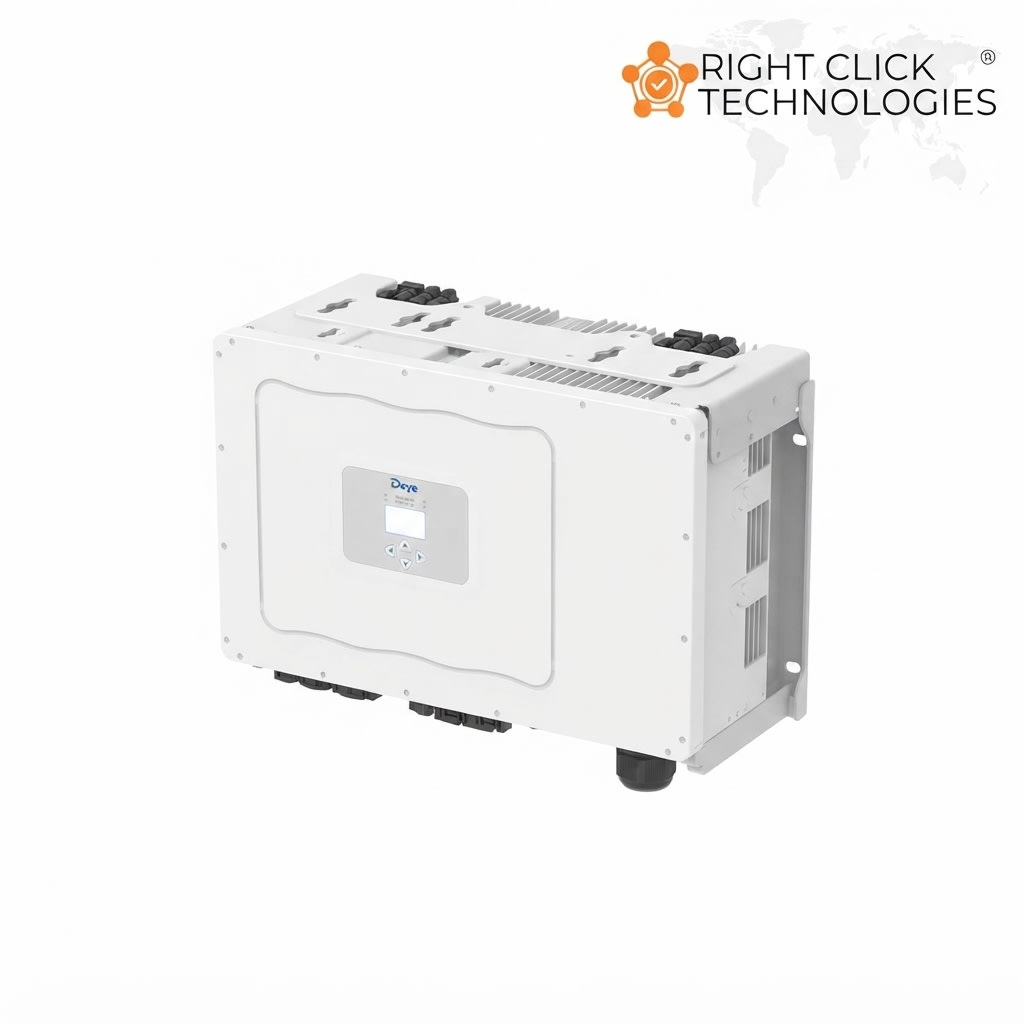

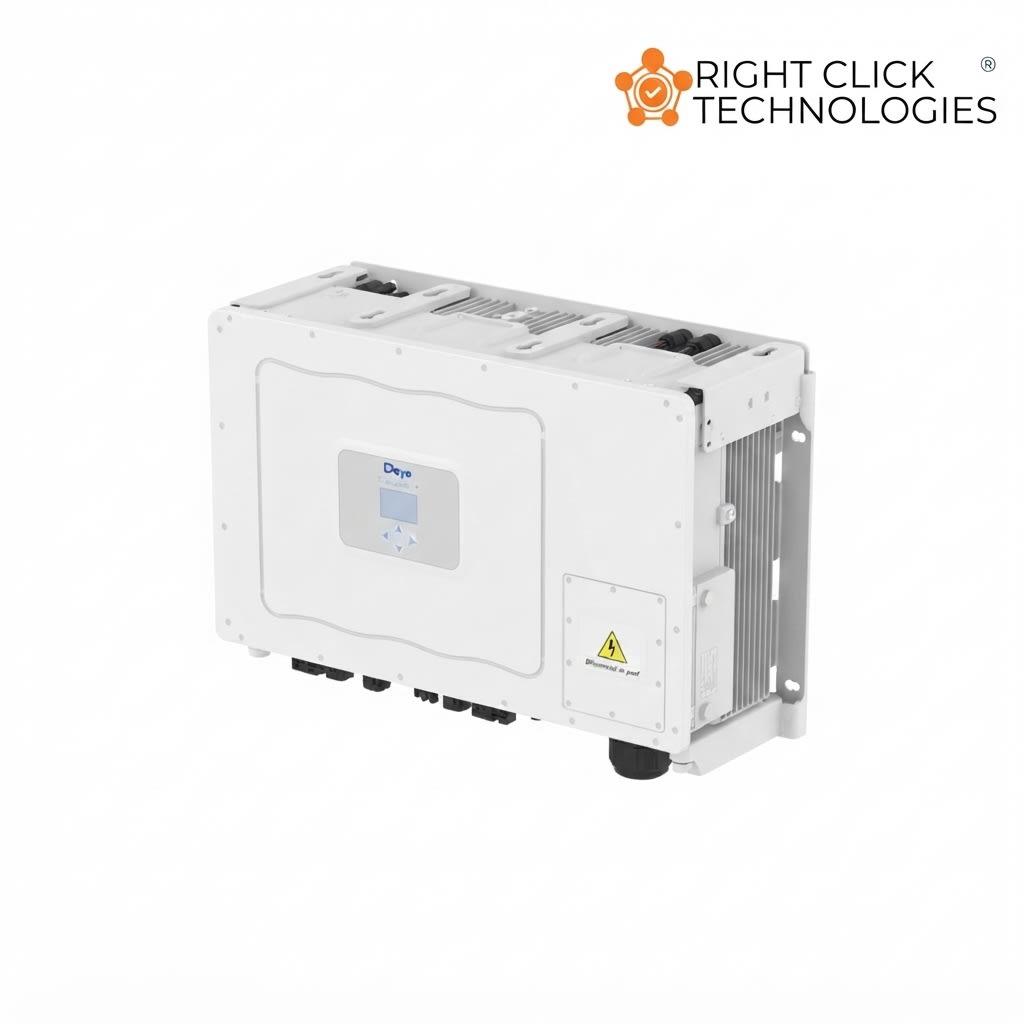

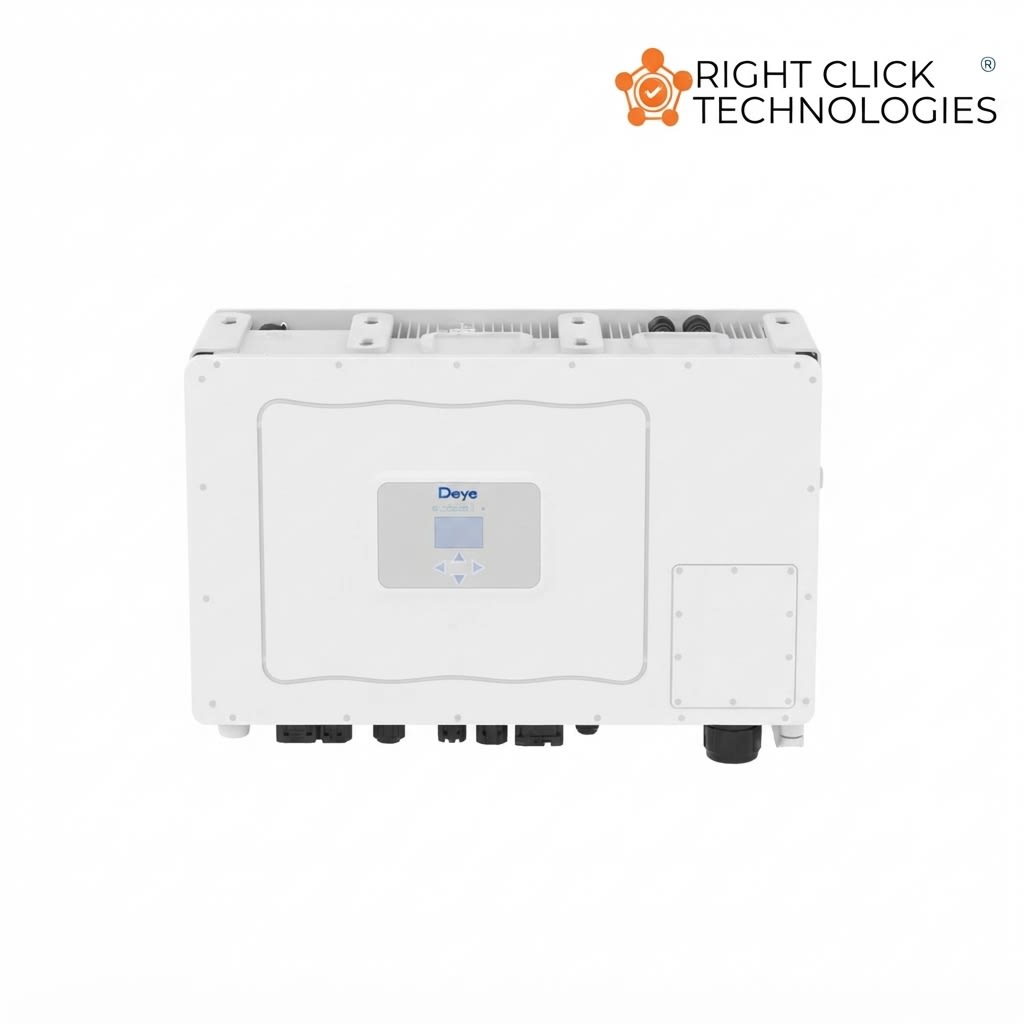

Deye 136kW Three-Phase is a commercial-grade, three-phase photovoltaic (PV) inverter designed for large grid-connected solar installations. It converts DC electricity from multiple solar panel strings into stable AC power while delivering high efficiency and reliable performance. With eight MPPT channels, it allows flexible string configurations and maximizes energy yield even under partial shading or uneven irradiance conditions.
Unlike hybrid inverters, the Deye 136kW Three-Phase inverter is optimized specifically for grid-tied applications, ensuring superior power quality and consistent energy output.
This inverter is ideal for:
Large commercial rooftops and solar farms
Industrial facilities and manufacturing plants
Corporate campuses and business parks
Utility‑scale solar installations
Commercial developers aiming for high energy efficiency
Solar installers handling multi‑kilowatt systems
136kW rated three‑phase output with wide grid compatibility
8 independent MPPT trackers for maximum PV harvesting
 High maximum efficiency up to 98.8 %
 Wide MPPT voltage range (typically 200–1000 V)
 Support for zero export and VSG applications
 Advanced protection: SPD Type II, anti‑PID (optional), thermal, short‑circuit, over/undervoltage
 Flexible monitoring: Wi‑Fi, LAN, RS485, RS232, optional GPRS/4G
 IP65 rated for outdoor installation
| Specification | Wide/range |
|---|---|
| Model | SUN‑136K‑G01P3‑EU‑AM8 |
| Rated AC Power | 136 kW |
| Max AC Active Power | 136 kW |
| Number of MPPT Trackers | 8 |
| Strings per MPPT | 4 |
| Max DC Input Power | ~204 kW |
| Max DC Input Voltage | 1100 V |
| MPPT Voltage Range | 200 – 1000 V |
| Max DC Input Current | 40 A per MPPT |
| Max Short Circuit Current | 60 A per MPPT |
| Max Efficiency | ~98.8 % |
| Grid Output Voltage | 3L/N/PE 220/380 V, 230/400 V |
| THDi | < 3 % |
| Protection Rating | IP65 |
| Cooling | Smart cooling |
| Communication | Wi‑Fi / LAN / RS485 / RS232 |
| Noise Level | ≤ 65 dB |
High‑power performance — ideal for large commercial and industrial systems.
8 MPPT channels — allows flexible string design for uneven panel layouts.
High energy harvest — up to 98.8 % efficiency maximises output.
Advanced grid support — zero export and VSG capability enhance utility compliance.
Robust protection features — safeguards investment and extends system life.
Outdoor readiness — IP65 enclosure for harsh environments.
Commercial solar rooftops
Industrial solar arrays
Solar farms and large PV power plants
Corporate campuses
Utility grid export systems
High‑yield commercial installations
Upgrade your large‑scale solar energy system with industry‑leading performance and reliable operation.
Add the Deye 136kW Three‑Phase String Inverter With 8 MPPT to your cart now to maximise solar energy yield, enjoy smart monitoring, and build a future‑ready solar power system!
| Weight | 103 kg |
|---|---|
| Dimensions | 32.6 × 100.6 × 51.6 cm |
