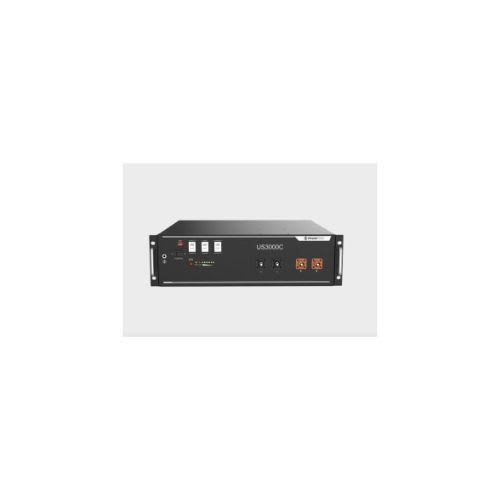

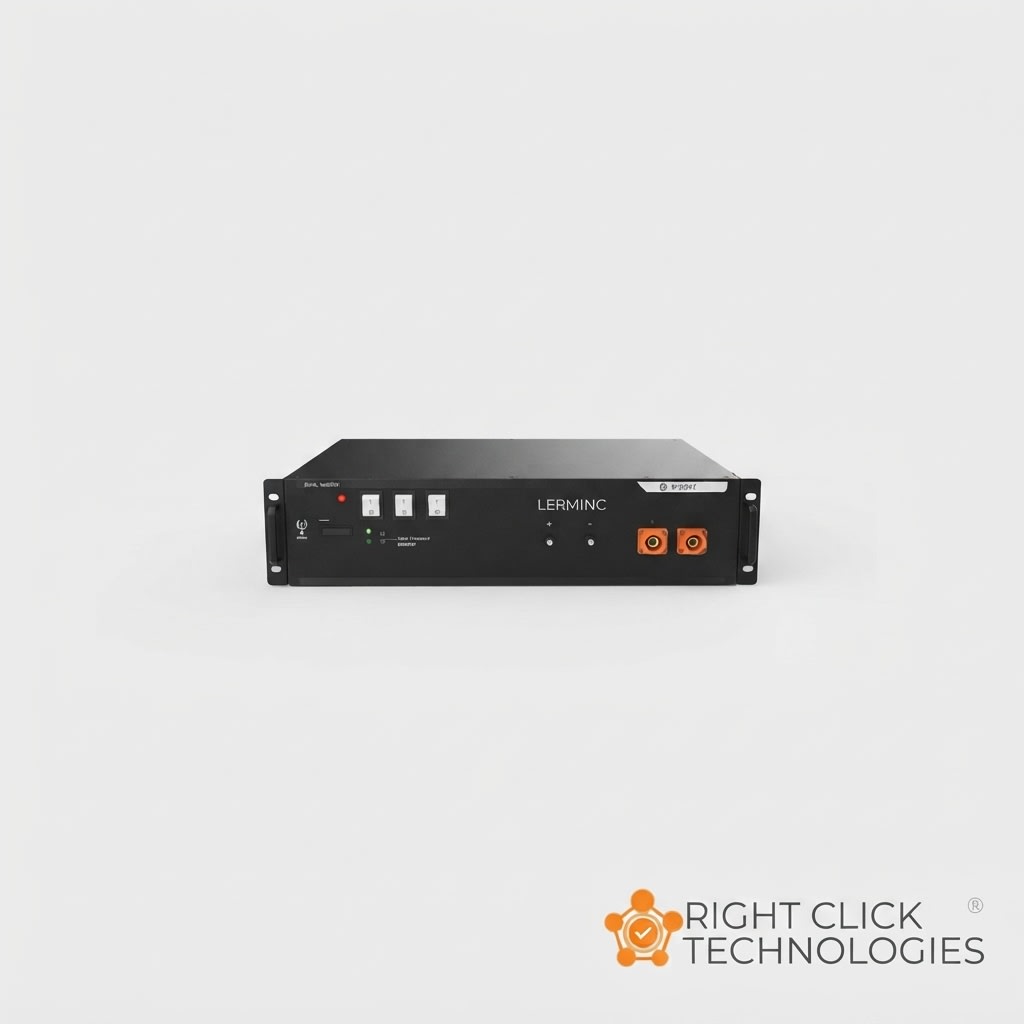

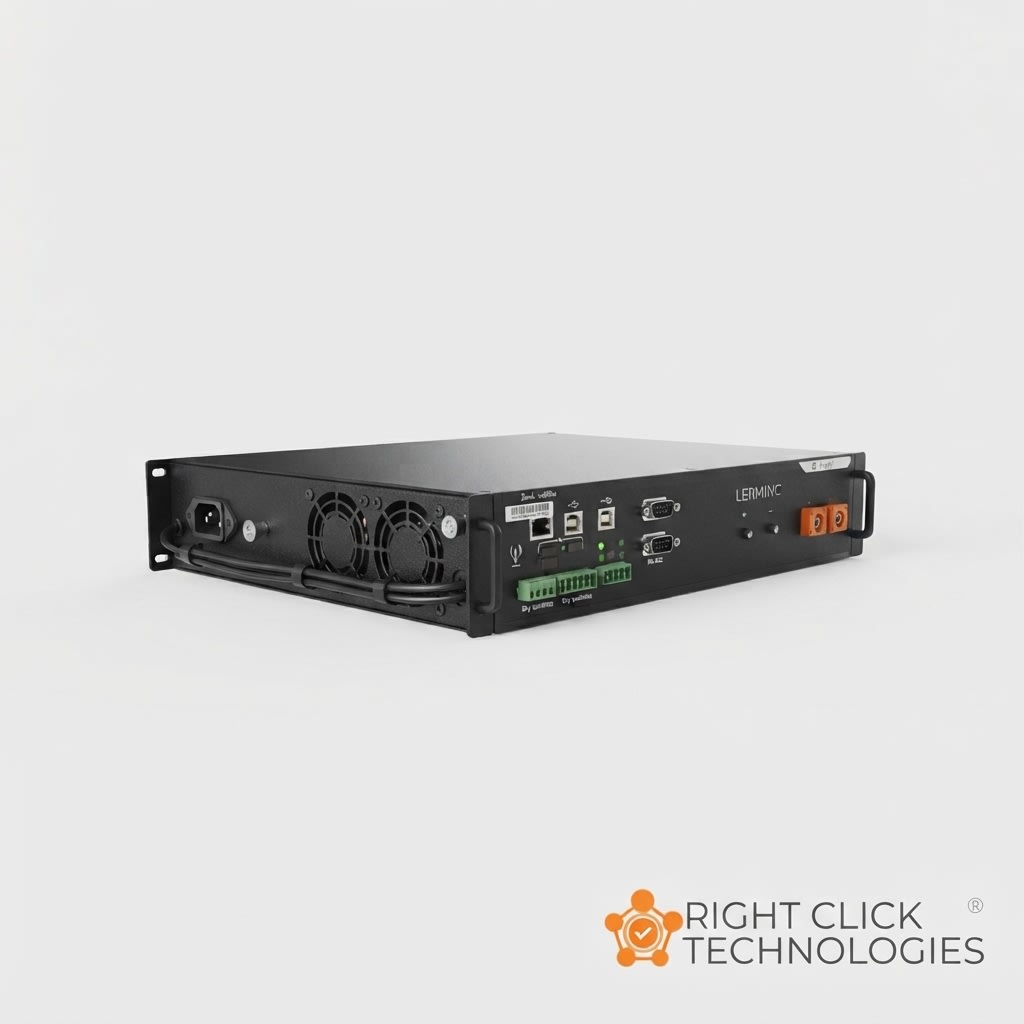

Pylontech 3.5KWh Lithium Ion Solar Battery | Right Click Technologies Ltd

Description

The Pylontech 3.5kWh Lithium-Ion Solar Battery is a reliable and efficient energy storage solution designed for residential and commercial solar systems. Utilizing advanced lithium iron phosphate (LiFePO4) technology, this battery delivers superior performance, safety, and durability, making it an excellent choice for renewable energy storage.

Key Features

High Energy Capacity:
- Offers 3.5kWh of usable energy storage to support household or commercial energy needs effectively.
Advanced Lithium Iron Phosphate Technology:
- Ensures high energy density, long lifespan, and enhanced safety for stable and reliable performance.
Scalable Design:
- Modular architecture allows for easy expansion by connecting multiple batteries in parallel to increase storage capacity.
Long Cycle Life:
- Provides over 6,000 cycles at 80% Depth of Discharge (DoD), ensuring years of dependable service.
Efficient Energy Management:
- Low self-discharge rate and high round-trip efficiency for optimal energy usage and storage.
Compact and Lightweight:
- Space-saving design makes installation easy and flexible for different applications.
Robust Battery Management System (BMS):
- Integrated BMS protects against overcharge, over-discharge, and short circuits, enhancing safety and longevity.
Wide Compatibility:
- Compatible with leading inverter brands, making it versatile for various solar installations.
Eco-Friendly Solution:
- Promotes renewable energy adoption with sustainable and environmentally friendly materials.

Specifications

Parameter	Value
Battery chemistry	Lithium Iron Phosphate (LiFePO₄)
Nominal voltage	48 Vdc
Nominal capacity	~3.55 kWh (sometimes rounded “3.5 kWh”)
Usable capacity	~3.37 kWh in one spec sheet
Depth of Discharge (DoD)	Up to ~95% in some listings
Cycle life	> 8,000 cycles at ~25 °C (in one spec sheet) Other sources say ~6,000 cycles at 80% DoD.
Dimension (HxWxD)	442 × 410 × 132 mm (in many specs)
Weight	~32 kg
Max continuous charge/discharge current	Approx. 37 A recommended; peak discharge currents quoted ~74-89 A for 60 s & 90-200 A for 15 s in one spec.
Communication interfaces	RS485, CAN (sometimes RS232 also mentioned)
Operating temperature – charge	0 °C to +50 °C
Operating temperature – discharge	-10 °C to +50 °C
Storage temperature	-20 °C to +60 °C
Maximum parallel units	Up to 16 in many specs for one string. Some resellers mention up to 40 units in specific firmware/region.
Ingress protection	IP20 (indoor use) in one listing.
Certifications	UL1973, UL1642, UL9540A, VDE2510-50, IEC632056/62619/62040/62477-1 etc (depending region)
Warranty	In many markets 10 years (or as per region) listed.

The Pylontech 3.5kWh Lithium-Ion Solar Battery offers dependable performance, long lifespan, and easy scalability, making it an ideal choice for storing solar energy and ensuring energy independence.

Additional information

Weight	32 kg
Dimensions	44.2 × 42.0 × 13.2 cm
