Description
Why Choose TINSE Endurance

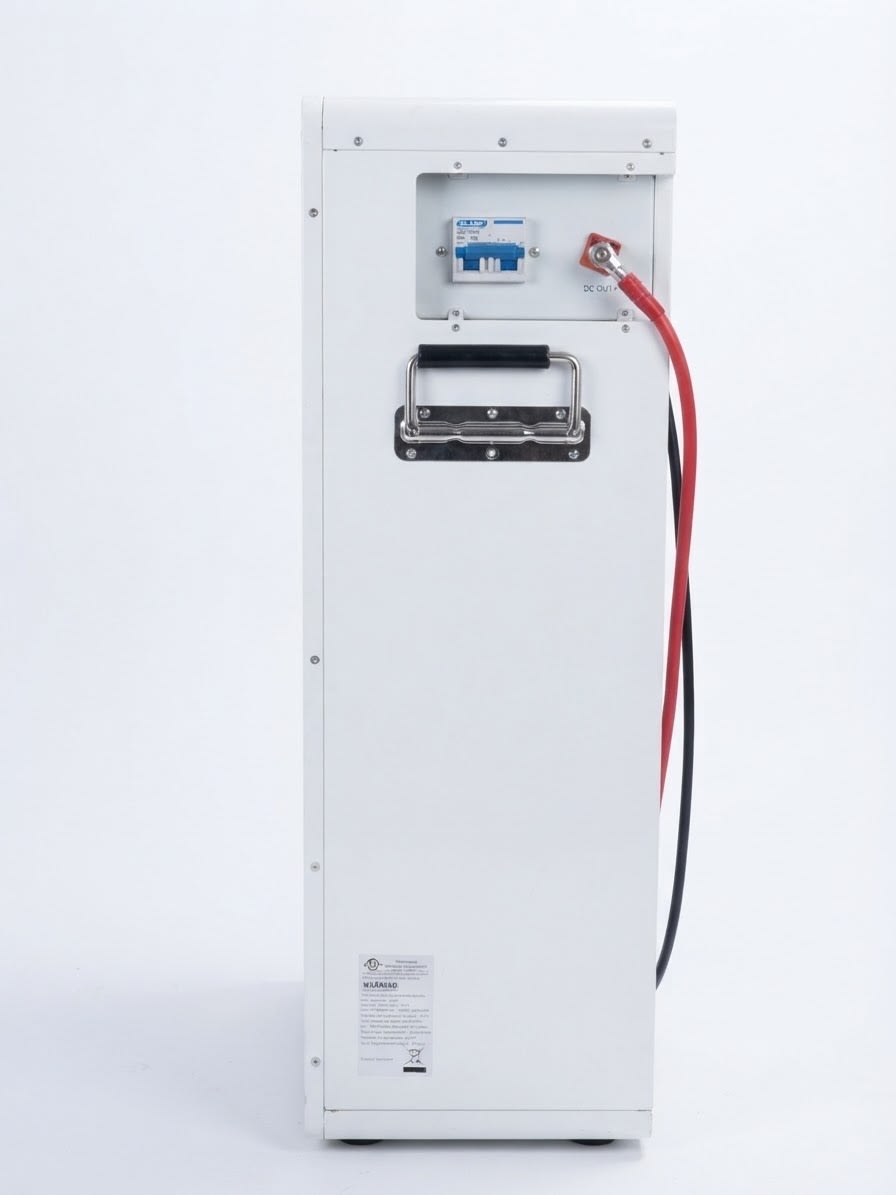

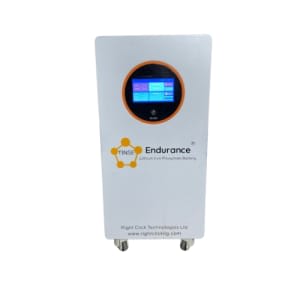

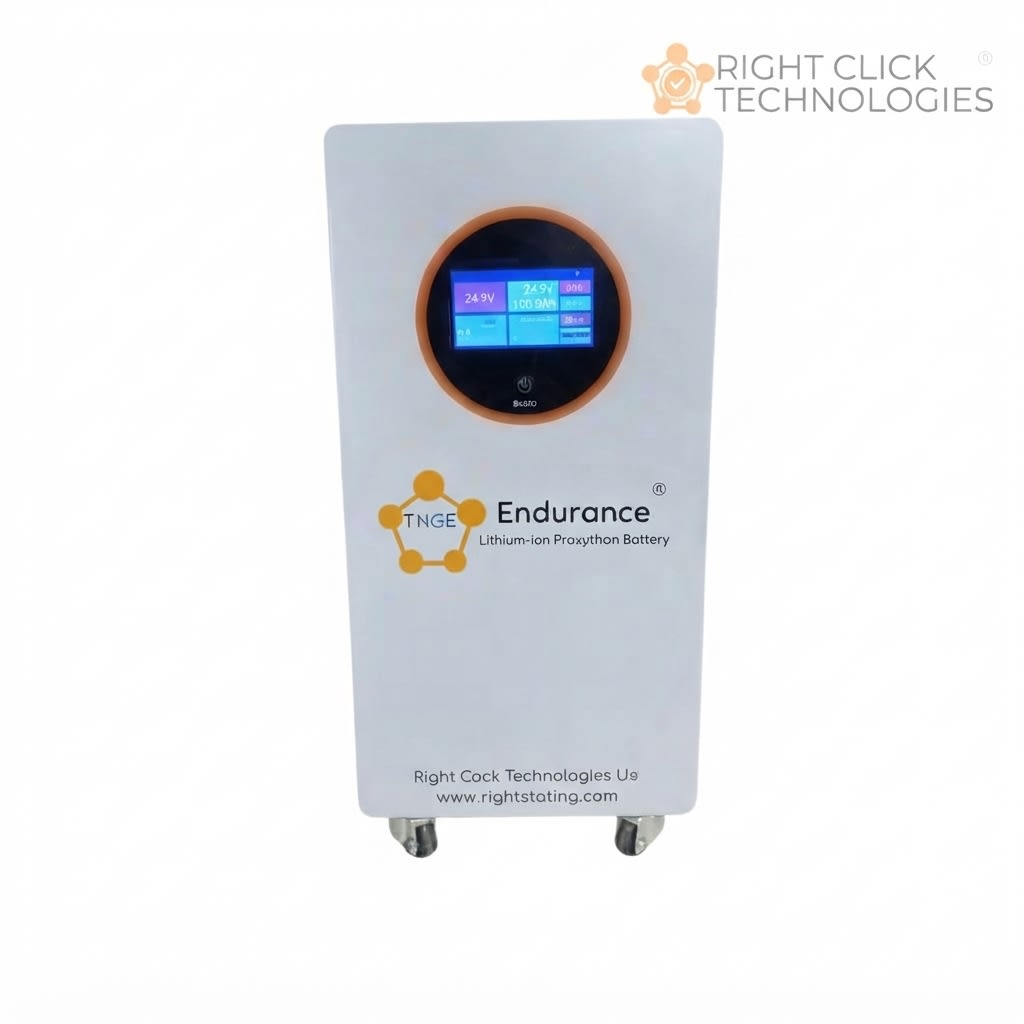

The TINSE Endurance 10kWh 48V LiFePO₄ Battery is a high-capacity energy storage solution designed to provide dependable power for residential, commercial, and solar energy systems. With 10kWh of energy storage capacity and a 48V system voltage, it is suitable for storing energy generated from solar panels or other compatible power sources for use when needed.
Built with Lithium Iron Phosphate (LiFePO₄) battery technology, the TINSE Endurance is designed to deliver reliable performance, long service life, and efficient energy storage. It is an ideal option for backup power systems, renewable energy installations, and applications requiring dependable battery storage.
Key Features
- 10kWh Energy Capacity – Provides substantial energy storage for backup and renewable energy applications.
- 48V System Voltage – Suitable for compatible 48V solar and energy-storage systems.
- LiFePO₄ Technology – Uses Lithium Iron Phosphate chemistry for reliable and efficient energy storage.
- Long Service Life – Designed for frequent charging and discharging over an extended operating lifespan.
- Reliable Energy Storage – Stores energy for use during power interruptions or when renewable generation is unavailable.
- Suitable for Solar Systems – Ideal for pairing with compatible solar inverters and photovoltaic installations.
- Versatile Application – Suitable for residential, commercial, and other energy-storage requirements.
- Backup Power Solution – Helps provide stored energy when the primary power source is unavailable.
Technical Specifications
| Parameter | Value |
|---|---|
| Model reference | TE10kWh48V |
| Nominal voltage | 51.2V |
| Nominal capacity | 200Ah |
| Usable energy | 10,240Wh (10.24kWh) |
| Charge cut-off voltage | 58.4V |
| Standard charging current | 100A (0.5C) |
| Maximum charging current | 200A |
| Standard continuous discharge current | 120A (0.6C) |
| Maximum discharge current | 200A |
| Discharge cut-off voltage | 44V (adjustable) |
| Internal resistance | ≤80mΩ |
| Charging temperature range | 0°C to 45°C |
| Discharge temperature range | -10°C to 55°C |
| Storage temperature range | -40°C to 55°C (recommended 15–35°C) |
| Dimensions (W x H x D) | 410 x 680 x 260mm |
| Weight | <88kg |
| Communication | RS485 / CAN / UART / WiFi (optional) |
| Parallel capability | Up to 16 units |
| Certifications | RoHS compliant |
Ideal Applications
- Home solar backup and energy storage
- Small office / SME backup power
- Off-grid solar systems
- Telecom and access-network backup power
In the Box
- 1x TINSE Endurance 10kWh Battery
- BMS-to-inverter communication cable
- User manual
